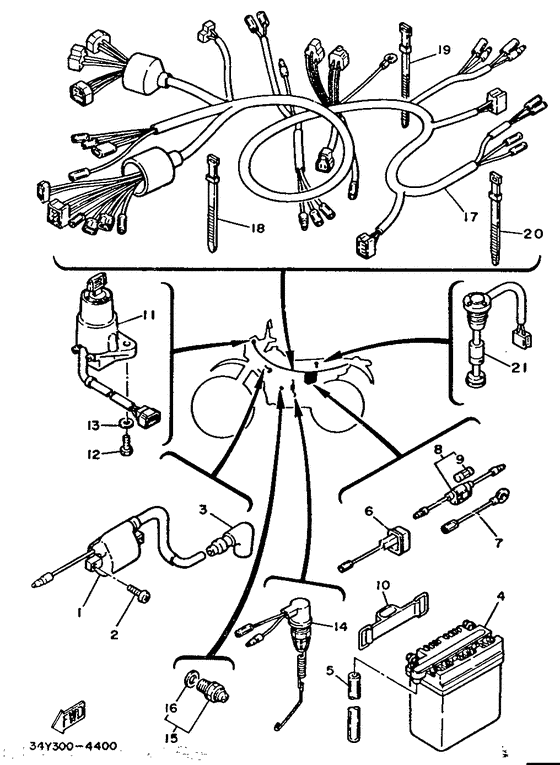

Electrical 1 Diagram Yamaha DT125 DT125L
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 35E
- Sales region
- Switzerland (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34X-82310-M0-00 Ignition Coil Assy |
34X-82310-M0-00 |
US $89.39 |
||
| replacements | |||||
|
01
|
01
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
01
|
01
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
01
|
01
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
01
|
01
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
02
|
02
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
02
|
02
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
03
|
03
1M1-82370-21-00 Plug Cap AssyWith noise suppressor |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
03
|
03
8DG-82370-00-00 Plug Cap AssyWith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
04
|
04
30W-82110-79-00
Battery Assy
|
30W-82110-79-00 |
— | ||
| replacements | |||||
|
04
|
04
907-9R242-83-00
Battery (Yb3L-B)
|
907-9R242-83-00 |
— | ||
|
04
|
04
YB3-LB000-00-00
Bat Yb3L-B Yu
|
YB3-LB000-00-00 |
— | ||
|
04
|
04
CB3-LB000-00-00
12N14-3A GS BATTERY
|
CB3-LB000-00-00 |
— | ||
|
05
|
05
90445-08425-00 Hose (L350) |
90445-08425-00 |
from US $10.91 |
||
| replacement | |||||
|
05
|
05
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
06
|
06
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
07
|
07
558-82116-00-00 Wire, Minus Lead |
558-82116-00-00 |
US $9.41 |
||
|
08
|
08
353-82150-00-00
Fuse Holder Assy
|
353-82150-00-00 |
— | ||
| replacements | |||||
|
08
|
08
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
08
|
08
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
09
|
09
116-82151-00-00
Fuse (12V-10A)
|
116-82151-00-00 |
— | ||
| replacement | |||||
|
09
|
09
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
10
|
10
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
11
|
11
34Y-82501-00-00
Main Switch Steering Lock
|
34Y-82501-00-00 |
— | ||
|
12
|
12
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
34X-82530-00-00
Stop Switch Assy
|
34X-82530-00-00 |
— | ||
| replacement | |||||
|
14
|
14
34X-82530-02-00
Stop Switch Assy
|
34X-82530-02-00 |
— | ||
|
15
|
15
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
15
|
15
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
15
|
15
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
16
|
16
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
16
|
16
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
17
|
17
34Y-82590-00-00
Wire Harness Assy
|
34Y-82590-00-00 |
— | ||
| replacement | |||||
|
17
|
17
34Y-82590-01-00
Wire Harness Assy
|
34Y-82590-01-00 |
— | ||
|
18
|
18
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
19
|
19
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
19
|
19
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
34X-85720-00-00 Oil Level Gauge Assy |
34X-85720-00-00 |
from US $46.84 |
||
| replacement | |||||
|
21
|
21
34X-85720-02-00
Oil Level Gauge Assy
|
34X-85720-02-00 |
— | ||
