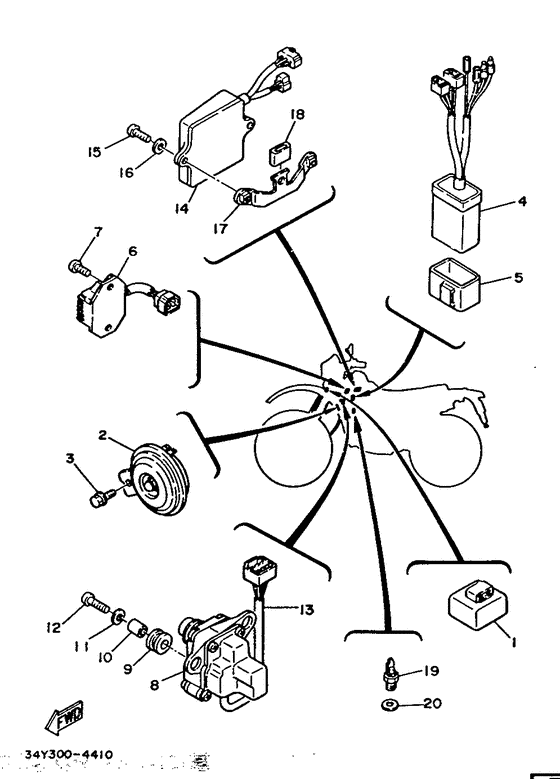

Electrical 2 Diagram Yamaha DT125 DT125L
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 35E
- Sales region
- Switzerland (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
02
|
02
34Y-83371-00-00 Horn |
34Y-83371-00-00 |
from US $55.87 |
||
| replacement | |||||
|
02
|
02
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
03
|
03
95026-06010-00 Bolt, Flange |
95026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
04
|
04
57U-85540-M0-00
C.d.i. Unit Assy
|
57U-85540-M0-00 |
— | ||
|
05
|
05
34X-85546-00-00
Band
|
34X-85546-00-00 |
— | ||
|
06
|
06
34X-81960-90-00 Rectifier & Regulator Assy |
34X-81960-90-00 |
US $235.22 |
||
| replacement | |||||
|
06
|
06
3BN-81960-01-00 Rectifier & Regulator Assy |
3BN-81960-01-00 |
US $235.22 |
||
|
07
|
07
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
07
|
07
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
08
|
08
34X-85820-00-00
Servo Motor Assy
|
34X-85820-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
10
|
10
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
11
|
11
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
13
|
13
34X-85825-00-00 Cover, Wire |
34X-85825-00-00 |
from US $18.59 |
||
| replacement | |||||
|
13
|
13
34X-85825-01-00 Cover, Wire |
34X-85825-01-00 |
US $18.59 |
||
|
14
|
14
57U-85830-M0-00
Control Unit Assy
|
57U-85830-M0-00 |
— | ||
|
15
|
15
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
34X-85991-00-00
Bracket, Unit
|
34X-85991-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
36X-83321-00-00 Damper, Flasher 1 |
36X-83321-00-00 |
US $8.64 |
||
|
19
|
19
10V-83591-00-00
Thermo Unit
|
10V-83591-00-00 |
— | ||
|
20
|
20
90430-10164-00 Gasket |
90430-10164-00 |
from US $1.81 |
||
