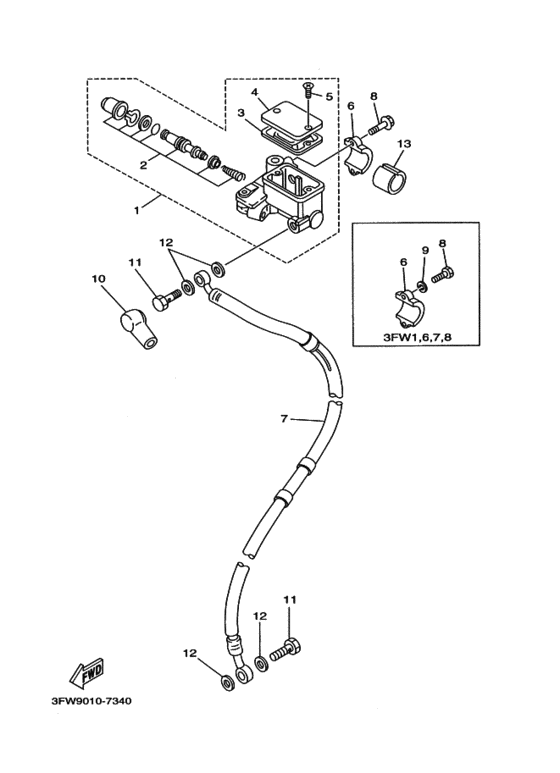

Front master cylinder Diagram Yamaha DT125 DT125R
- Year
- 1991
- Colour
- Deep Violet Solid 1 (DVS1; 0119)
- Model code
- 3FW6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KF-25850-00-00 Master Cylinder Assy |
2KF-25850-00-00 |
from US $194.65 |
||
| replacement | |||||
|
1
|
1
5CG-2583T-12-00 Master Cylinder Assy |
5CG-2583T-12-00 |
from US $138.55 |
||
|
2
|
2
59X-W0041-00-00 Cyl Kit,master．シリンダキツト，マスタ; |
59X-W0041-00-00 |
from US $55.26 |
||
| replacement | |||||
|
2
|
2
5VK-25807-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
5VK-25807-00-00 |
from US $67.86 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm．ダイヤフラム，リザーバ; |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron．キヤツプ，リザーバ; |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front)．キヤツプ，リザーバ; |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
．スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
3BN-25872-01-00
Hose, Brake 1
ホース，ブレーキ １; 014101〜 |
3BN-25872-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99025-32-00
Brake Hose Set(3Bn)
ホース，ブレーキ １; 014101〜 |
999-99025-32-00 |
— | ||
|
8
|
8
97007-06025-00 Boltボルト; |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Boltボルト; |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
4L0-25862-00-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
10
|
10
4L0-25862-01-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-01-00 |
from US $10.34 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
