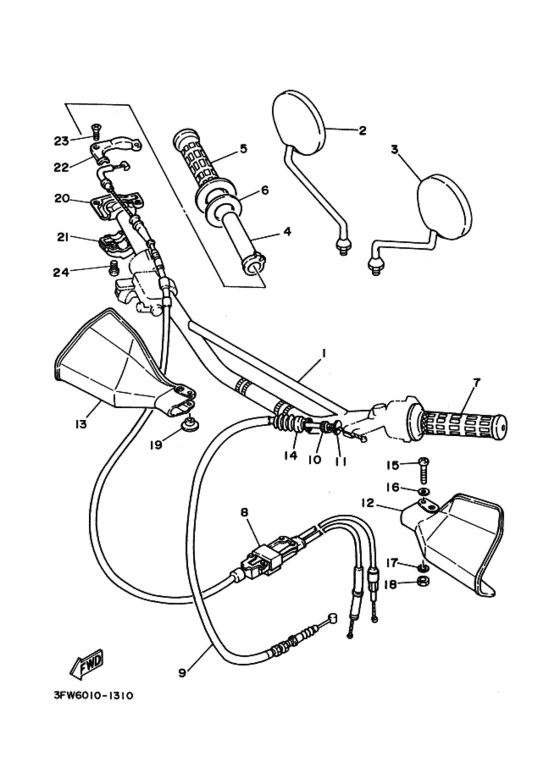

Steering handle & cable Diagram Yamaha DT125 DT125R
- Year
- 1991
- Colour
- Deep Violet Solid 1 (DVS1; 0119)
- Model code
- 3FW6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JX-26111-00-00 Handlebarハンドルバー; |
2JX-26111-00-00 |
from US $46.55 |
||
| replacement | |||||
|
1
|
1
5LB-26111-00-00 Handlebarハンドルバー; |
5LB-26111-00-00 |
from US $57.47 |
||
|
2
|
2
3Y1-26290-00-00 Back Mirror Assy (R.h)バツクミラーアセンブリ ; ライト |
3Y1-26290-00-00 |
from US $17.18 |
||
|
3
|
3
5Y1-26290-10-00 Back Mirror Assy (L.h)バツクミラーアセンブリ ; レフト |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
3
|
3
5Y1-26290-11-00 MIRROR ASSY., 2バツクミラーアセンブリ ; レフト |
5Y1-26290-11-00 |
from US $35.99 |
||
|
4
|
4
322-26243-00-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
322-26243-00-00 |
from US $12.61 |
||
| replacement | |||||
|
4
|
4
22W-26243-00-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
22W-26243-00-00 |
from US $15.12 |
||
|
5
|
5
33G-26242-00-00 Grip (Right)グリツプ ; ライト |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
5
|
5
33G-26242-01-00 Grip (Right)グリツプ ; ライト |
33G-26242-01-00 |
from US $14.09 |
||
|
6
|
6
1M1-26249-01-00 Ring, Leafリング，リーフ; |
1M1-26249-01-00 |
from US $3.68 |
||
|
7
|
7
33G-26241-00-00 Grip (Left)グリツプ ; レフト |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
7
|
7
33G-26241-01-00 Grip (Left)グリツプ ; レフト |
33G-26241-01-00 |
from US $19.94 |
||
|
8
|
8
3BN-26301-00-00
Throttle Cable Assy
スロツトルケーブルアセンブリ; |
3BN-26301-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3BN-26301-11-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
3BN-26301-11-00 |
US $43.41 |
||
|
9
|
9
3BN-26335-00-00 Cable, clutchケーブル，クラツチ; |
3BN-26335-00-00 |
US $44.90 |
||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
3TB-26141-50-00
Guard, Brush 1
ガード，ブラシユ １; ＵＲ デイープバイオレツトソリツド １ |
3TB-26141-50-00 |
— | ||
|
13
|
13
3BN-26142-30-00
Guard, Brush 2
ガード，ブラシユ ２; ＵＲ デイープバイオレツトソリツド １ |
3BN-26142-30-00 |
— | ||
|
14
|
14
1E6-26342-00-00 Boot, Cableブーツ，ケーブル; |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
98507-06035-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06035-00 |
from US $1.39 |
||
|
16
|
16
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
18
|
18
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
19
|
19
90387-06500-00 Collarカラー; |
90387-06500-00 |
from US $2.39 |
||
|
20
|
20
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
21
|
21
322-26282-00-00 Cap, Grip Underキヤツプ，グリツプロワー; |
322-26282-00-00 |
from US $14.45 |
||
|
22
|
22
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
23
|
23
98707-04012-00 Screw, Flat Headスクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
24
|
24
98507-05016-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
