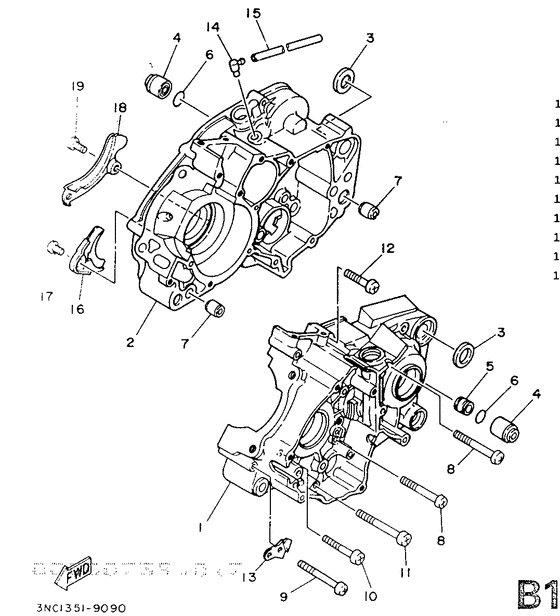

Crankcase Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3NC-E5111-00-00
Crankcase 1
|
3NC-E5111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3NC-E5159-00-00
Cover, Starter
|
3NC-E5159-00-00 |
— | ||
|
02
|
02
3NC-E5121-00-00
Crankcase 2
|
3NC-E5121-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3NC-E5159-00-00
Cover, Starter
|
3NC-E5159-00-00 |
— | ||
|
03
|
03
90201-170M2-00 Washer, Plate |
90201-170M2-00 |
from US $6.52 |
||
| replacement | |||||
|
03
|
03
90201-16021-00 Washer, Plate |
90201-16021-00 |
from US $6.52 |
||
|
04
|
04
328-15316-00-00
Damper, Engine Mount 1 (328-153)
|
328-15316-00-00 |
— | ||
| replacement | |||||
|
04
|
04
90388-08003-00 Damper |
90388-08003-00 |
from US $21.44 |
||
|
05
|
05
3NC-E5317-00-00
Spacer, Engine Mount
|
3NC-E5317-00-00 |
— | ||
|
06
|
06
93210-12154-00 O-Ring (256) |
93210-12154-00 |
from US $5.29 |
||
| replacement | |||||
|
06
|
06
93210-11313-00 O-Ring (1J7) |
93210-11313-00 |
from US $6.94 |
||
|
07
|
07
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
07
|
07
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
08
|
08
92501-06060-00 Screw, Pan Head (92580-06560-00 |
92501-06060-00 |
from US $5.29 |
||
| replacement | |||||
|
08
|
08
985-80065-60-00 Screw, Pan Head (92580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
09
|
09
925-01060-65-00
Screw, Pan Head
|
925-01060-65-00 |
— | ||
| replacement | |||||
|
09
|
09
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
10
|
10
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
10
|
10
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
11
|
11
92501-06070-00 Screw, Pan Head |
92501-06070-00 |
from US $6.52 |
||
| replacement | |||||
|
11
|
11
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
12
|
12
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
13
|
13
3NC-E5199-00-00
Bracket
|
3NC-E5199-00-00 |
— | ||
|
14
|
14
3FN-E5371-00-00
Breather
|
3FN-E5371-00-00 |
— | ||
|
15
|
15
90446-07321-00 Hose |
90446-07321-00 |
US $4.25 |
||
| replacement | |||||
|
15
|
15
90446-07349-00 Hose(3Xp) |
90446-07349-00 |
from US $4.25 |
||
|
16
|
16
3FN-E5128-00-00
Holder
|
3FN-E5128-00-00 |
— | ||
|
17
|
17
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
18
|
18
3FN-E5492-00-00
Cover
|
3FN-E5492-00-00 |
— | ||
|
19
|
19
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
