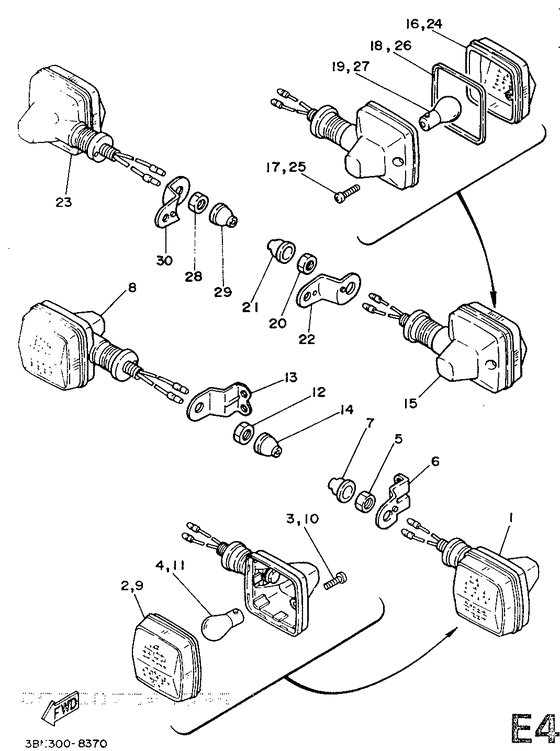

Flasher light Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3BN-83310-00-00 Front Flasher Light Assy 1 |
3BN-83310-00-00 |
US $71.57 |
||
| replacement | |||||
|
01
|
01
3BN-83310-01-00 Front Flasher Light Assy 1 |
3BN-83310-01-00 |
US $71.57 |
||
|
02
|
02
47J-83312-00-00 Lens, Flasher |
47J-83312-00-00 |
US $11.76 |
||
|
03
|
03
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
04
|
04
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
05
|
05
95302-12700-00 Nut, Hex |
95302-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
06
|
06
3BN-83318-00-00
Stay, Flasher 1
|
3BN-83318-00-00 |
— | ||
|
07
|
07
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
07
|
07
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
08
|
08
3BN-83320-00-00 Front Flasher Light Assy 2 |
3BN-83320-00-00 |
US $71.57 |
||
| replacement | |||||
|
08
|
08
3BN-83320-01-00 Front Flasher Light Assy 2 |
3BN-83320-01-00 |
US $71.57 |
||
|
09
|
09
47J-83322-00-00 Lens, Flasher 2 |
47J-83322-00-00 |
US $11.76 |
||
|
10
|
10
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
11
|
11
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
12
|
12
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
13
|
13
3BN-83328-00-00
Stay, Flasher 2
|
3BN-83328-00-00 |
— | ||
|
14
|
14
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
14
|
14
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
15
|
15
3BN-83330-00-00 Rear Flasher Light Assy 1 |
3BN-83330-00-00 |
US $52.20 |
||
| replacement | |||||
|
15
|
15
3LD-83330-01-00 Rear Flasher Light Assy 1 |
3LD-83330-01-00 |
US $45.75 |
||
|
16
|
16
2KF-83332-00-00 Lens, Flasher |
2KF-83332-00-00 |
US $14.73 |
||
|
17
|
17
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
18
|
18
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
19
|
19
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
20
|
20
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
21
|
21
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
21
|
21
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
22
|
22
15A-83368-00-00 Stay, Flasher |
15A-83368-00-00 |
US $16.81 |
||
|
23
|
23
3BN-83340-00-00 Flasher Light Assy 2 |
3BN-83340-00-00 |
US $52.20 |
||
| replacement | |||||
|
23
|
23
3LD-83340-01-00
Rear Flasher Light Assy 2
|
3LD-83340-01-00 |
— | ||
|
24
|
24
2KF-83342-00-00 Lens, Flasher 2 |
2KF-83342-00-00 |
US $14.73 |
||
|
25
|
25
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
26
|
26
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
27
|
27
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
28
|
28
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
28
|
28
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
29
|
29
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
29
|
29
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
30
|
30
15A-83369-00-00 Stay, Flasher |
15A-83369-00-00 |
US $16.81 |
||
