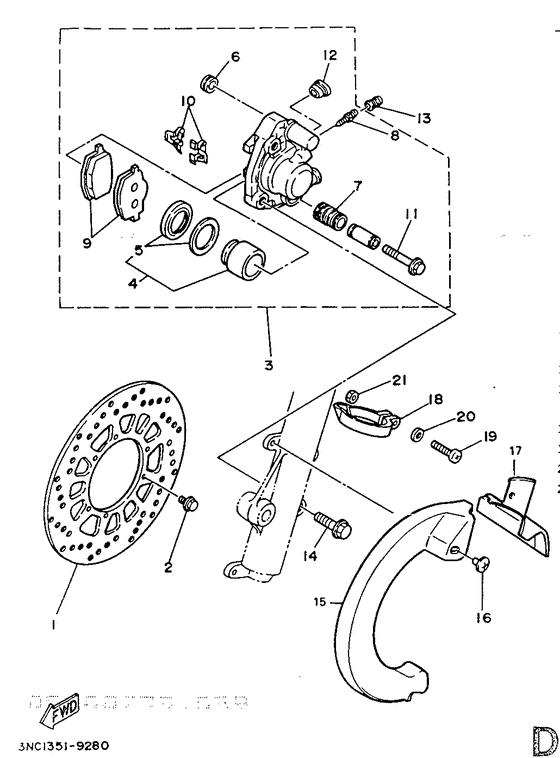

Front brake. caliper Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3BN-2582T-00-00 Disc, Brake (Left) |
3BN-2582T-00-00 |
US $353.69 |
||
| replacement | |||||
|
01
|
01
3BN-2582T-01-00 Disc, Brake (Left) |
3BN-2582T-01-00 |
US $269.64 |
||
|
02
|
02
901-09067-57-00
Bolt
|
901-09067-57-00 |
— | ||
| replacements | |||||
|
02
|
02
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
02
|
02
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
03
|
03
3BN-2580T-01-00 Caliper Assembly |
3BN-2580T-01-00 |
US $325.89 |
||
| replacement | |||||
|
03
|
03
34X-2580T-00-00 Caliper Assembly |
34X-2580T-00-00 |
US $325.40 |
||
|
04
|
04
34X-W0057-00-00 Piston Assy, Caliper |
34X-W0057-00-00 |
from US $94.23 |
||
|
05
|
05
34X-W0047-00-00 Caliper Seal Kit |
34X-W0047-00-00 |
from US $48.74 |
||
|
06
|
06
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
07
|
07
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
08
|
08
47X-25824-00-00 Screw, Bleed |
47X-25824-00-00 |
from US $7.79 |
||
| replacement | |||||
|
08
|
08
47X-25824-01-00 Screw, Bleed |
47X-25824-01-00 |
from US $7.79 |
||
|
09
|
09
3BN-W0045-00-00 Brake Pad Kit |
3BN-W0045-00-00 |
from US $42.43 |
||
| replacements | |||||
|
09
|
09
3BN-W0045-01-00
Brake Pad Kit
|
3BN-W0045-01-00 |
— | ||
|
09
|
09
3BN-25805-02-00 Brake Pad Kit |
3BN-25805-02-00 |
from US $41.36 |
||
|
10
|
10
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
11
|
11
34X-25926-00-00 Bolt |
34X-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
12
|
12
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
13
|
13
51L-25825-00-00 Cap |
51L-25825-00-00 |
from US $1.06 |
||
| replacement | |||||
|
13
|
13
1D7-25825-00-00 Cap |
1D7-25825-00-00 |
from US $1.56 |
||
|
14
|
14
90105-10308-00 Bolt, Washer Based |
90105-10308-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
15
|
15
3NC-F5715-00-00
Cover 1
Pr white |
3NC-F5715-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
Pr white |
999-99999-99-00 |
— | ||
|
15
|
15
3NC-F5715-10-00
Cover 1
Pr sebd et yb |
3NC-F5715-10-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
Pr sebd et yb |
999-99999-99-00 |
— | ||
|
16
|
16
90146-06194-00
Screw, Oval Fillister
|
90146-06194-00 |
— | ||
|
17
|
17
3NC-F5716-00-00
Cover 2
Pr white |
3NC-F5716-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Pr white |
999-99999-99-00 |
— | ||
|
17
|
17
3NC-F5716-10-00
Cover 2
Pr sebd et yb |
3NC-F5716-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Pr sebd et yb |
999-99999-99-00 |
— | ||
|
18
|
18
3ET-25719-00-00 Band |
3ET-25719-00-00 |
US $33.72 |
||
|
19
|
19
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
19
|
19
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
19
|
19
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
20
|
20
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
