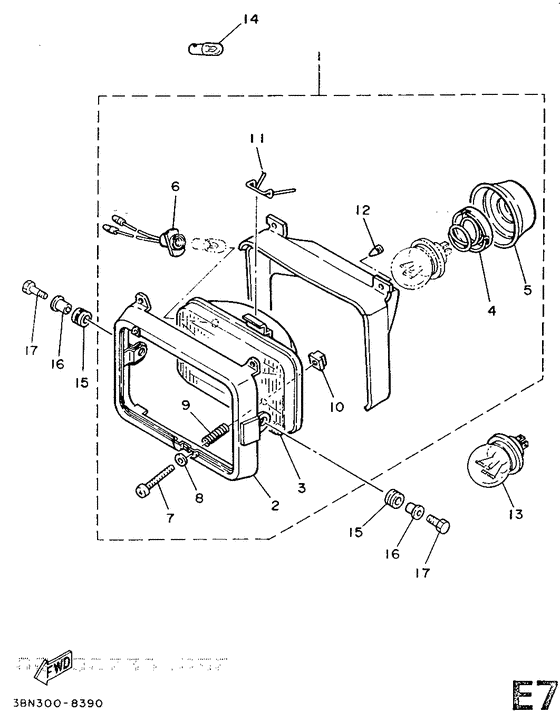

Headlight Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34Y-84310-20-00 Headlight Unit Assy |
34Y-84310-20-00 |
US $192.19 |
||
| replacement | |||||
|
01
|
01
34Y-84303-40-00
Headlight Unit Assy
|
34Y-84303-40-00 |
— | ||
|
02
|
02
47J-84115-00-00 Rim, Headlight |
47J-84115-00-00 |
from US $91.98 |
||
|
03
|
03
10W-84321-20-00
Lens Assy
|
10W-84321-20-00 |
— | ||
|
04
|
04
341-84393-40-00
Holder, Bulb (Germany)
|
341-84393-40-00 |
— | ||
|
05
|
05
46X-84396-00-00
Cover
|
46X-84396-00-00 |
— | ||
|
06
|
06
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
06
|
06
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
07
|
07
43F-84131-00-00 Screw, Rim Adjuster |
43F-84131-00-00 |
from US $5.97 |
||
|
08
|
08
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
09
|
09
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
10
|
10
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
11
|
11
5G2-84324-A0-00
Spring, Set
|
5G2-84324-A0-00 |
— | ||
| replacements | |||||
|
11
|
11
55X-84124-00-00 Spring, Set |
55X-84124-00-00 |
from US $4.53 |
||
|
11
|
11
14T-84124-00-00 Set Spring (5G2-84324-A0) |
14T-84124-00-00 |
from US $7.08 |
||
|
12
|
12
10V-84198-00-00 Clip, Cover Fitting |
10V-84198-00-00 |
from US $7.85 |
||
|
13
|
13
341-84314-20-00
Bulb, Headlight(12V 45/40W)
|
341-84314-20-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
4E2-84347-00-00 Bulb (12V-4W) |
4E2-84347-00-00 |
US $4.82 |
||
|
15
|
15
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
16
|
16
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
17
|
17
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
