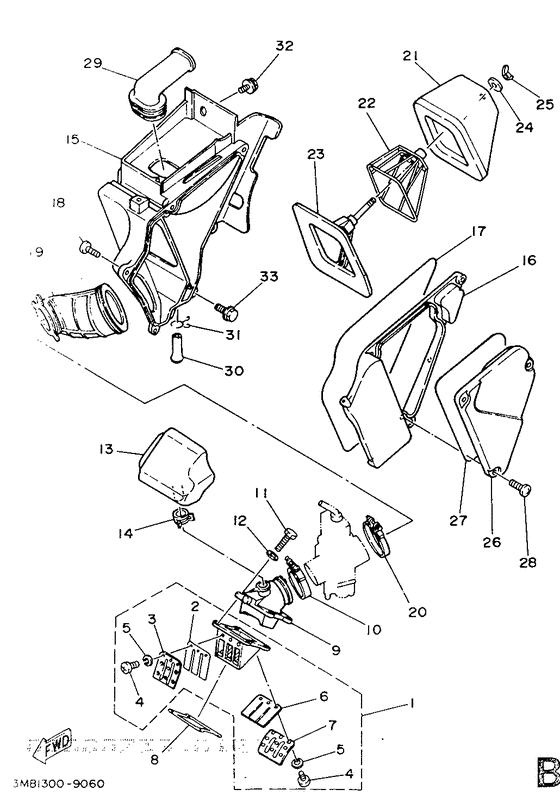

Intake Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3MB-13610-00-00 Reed Valve Assy |
3MB-13610-00-00 |
US $100.25 |
||
|
02
|
02
2TV-13613-00-00 Reed, Valve |
2TV-13613-00-00 |
US $17.71 |
||
|
03
|
03
3BN-13616-00-00 Stopper, Reed Valve |
3BN-13616-00-00 |
US $15.30 |
||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
3MB-13613-00-00 Reed, Valve |
3MB-13613-00-00 |
US $16.72 |
||
|
07
|
07
3MB-13616-00-00
Stopper, Reed Valve
|
3MB-13616-00-00 |
— | ||
|
08
|
08
2VR-E3621-00-00
Gasket, Valve Seat
|
2VR-E3621-00-00 |
— | ||
|
09
|
09
3ET-13565-00-00 Joint, Carburetor |
3ET-13565-00-00 |
US $97.13 |
||
| replacement | |||||
|
09
|
09
3ET-13565-01-00 Joint, Carburetor |
3ET-13565-01-00 |
US $97.13 |
||
|
10
|
10
90460-44108-00 Clamp, Hose |
90460-44108-00 |
from US $10.06 |
||
| replacement | |||||
|
10
|
10
904-50440-46-00 Hose Clamp Assy |
904-50440-46-00 |
from US $6.40 |
||
|
11
|
11
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
12
|
12
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
13
|
13
3ET-13581-00-00 Chamber, Air |
3ET-13581-00-00 |
US $23.63 |
||
|
14
|
14
90467-20050-00 Clip |
90467-20050-00 |
from US $1.28 |
||
|
15
|
15
3BN-14411-00-00
Case, Air Cleaner 1
|
3BN-14411-00-00 |
— | ||
|
16
|
16
3BN-14421-00-00
Case, Air Cleaner 2
|
3BN-14421-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4TP-14421-00-00
Case, Air Cleaner 2
|
4TP-14421-00-00 |
— | ||
|
17
|
17
3BN-14452-00-00 Seal |
3BN-14452-00-00 |
US $8.93 |
||
| replacement | |||||
|
17
|
17
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $11.93 |
||
|
18
|
18
97706-50520-00 Screw, Tapping |
97706-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
19
|
19
3MB-14453-00-00
Joint, Air Cleaner 1
|
3MB-14453-00-00 |
— | ||
|
20
|
20
1AE-13575-00-00 Hose Clamp Assy |
1AE-13575-00-00 |
from US $7.07 |
||
| replacement | |||||
|
20
|
20
90450-53005-00 Hose Clamp Assy |
90450-53005-00 |
from US $9.78 |
||
|
21
|
21
3BN-14451-00-00 Element, Air Cleaner |
3BN-14451-00-00 |
US $33.01 |
||
| replacement | |||||
|
21
|
21
3BN-14451-01-00 Element, Air Cleaner |
3BN-14451-01-00 |
US $33.01 |
||
|
22
|
22
3BN-14458-00-00 Guide |
3BN-14458-00-00 |
US $23.52 |
||
|
23
|
23
3BN-14459-00-00
Holder, Guide
|
3BN-14459-00-00 |
— | ||
|
24
|
24
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
25
|
25
90175-06012-00 Nut, Wing |
90175-06012-00 |
from US $2.72 |
||
| replacements | |||||
|
25
|
25
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
25
|
25
90175-06008-00 Nut, Wing |
90175-06008-00 |
from US $2.55 |
||
|
26
|
26
3BN-14412-00-00 Cap, Cleaner Case 1 |
3BN-14412-00-00 |
US $27.02 |
||
| replacement | |||||
|
26
|
26
3BN-14412-01-00 Cap, Cleaner Case 1 |
3BN-14412-01-00 |
US $27.02 |
||
|
27
|
27
3BN-14467-00-00 Seal |
3BN-14467-00-00 |
US $9.49 |
||
| replacement | |||||
|
27
|
27
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
28
|
28
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.81 |
||
|
29
|
29
3ET-14437-00-00 Duct |
3ET-14437-00-00 |
US $30.60 |
||
|
30
|
30
34X-1443E-00-00 Pipe, Drain |
34X-1443E-00-00 |
from US $4.68 |
||
|
31
|
31
90467-11102-00 Clip, Scissor |
90467-11102-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
32
|
32
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
32
|
32
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
32
|
32
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
33
|
33
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
| replacement | |||||
|
33
|
33
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
