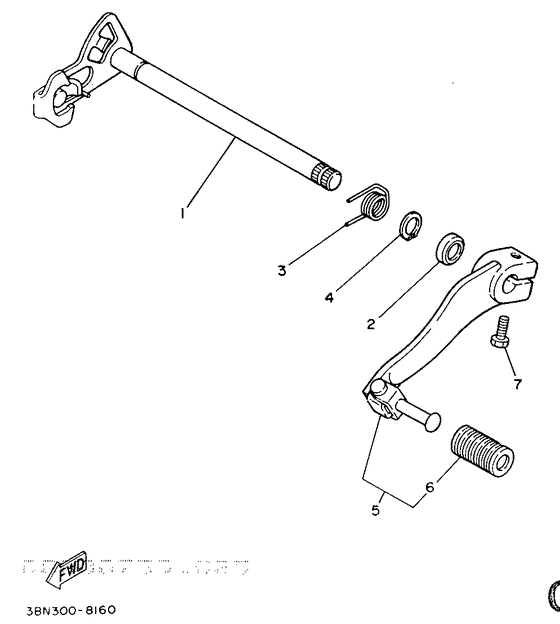

Shift shaft Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
10W-18101-01-00 Shift Shaft Assy |
10W-18101-01-00 |
US $96.57 |
||
| replacement | |||||
|
01
|
01
10W-18101-03-00 Shift Shaft Assembly.1 |
10W-18101-03-00 |
from US $96.57 |
||
|
02
|
02
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
02
|
02
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
03
|
03
90508-14525-00 Spring, Torsion |
90508-14525-00 |
from US $1.28 |
||
|
04
|
04
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.39 |
||
| replacement | |||||
|
04
|
04
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
05
|
05
3NC-E8110-00-00 Shift Pedal Assy |
3NC-E8110-00-00 |
US $61.38 |
||
| replacement | |||||
|
05
|
05
3BN-18110-00-00
Shift Pedal Assy
|
3BN-18110-00-00 |
— | ||
|
06
|
06
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $7.21 |
||
|
07
|
07
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
07
|
07
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
