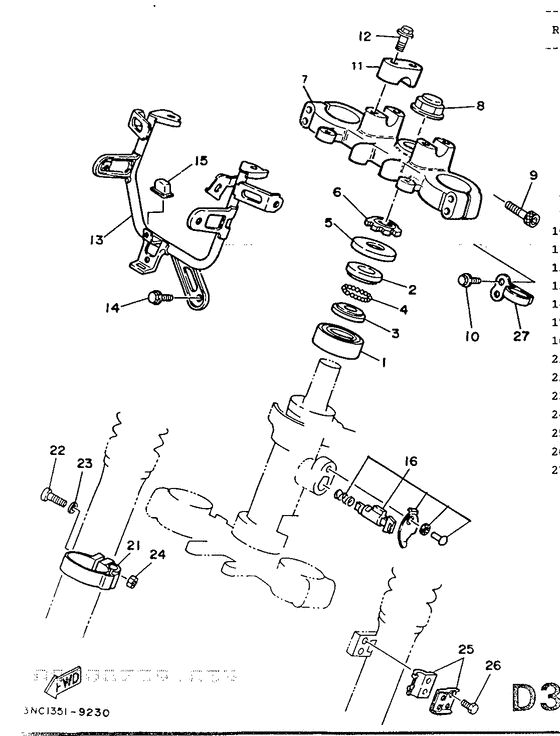

Steering Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3PY1
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
02
|
02
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
02
|
02
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
02
|
02
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
03
|
03
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
03
|
03
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
03
|
03
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
04
|
04
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
04
|
04
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
05
|
05
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
06
|
06
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
06
|
06
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
06
|
06
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
07
|
07
3NC-F3435-00-98
Crown, Handle
L.g.black |
3NC-F3435-00-98 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
L.g.black |
999-99999-99-00 |
— | ||
|
08
|
08
90179-22455-00
Nut, Spec''l Shape
|
90179-22455-00 |
— | ||
|
09
|
09
91316-08035-00 Bolt |
91316-08035-00 |
from US $1.84 |
||
| replacement | |||||
|
09
|
09
913-17080-35-00 Bolt |
913-17080-35-00 |
from US $1.84 |
||
|
10
|
10
91026-08035-00 Bolt |
91026-08035-00 |
US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
11
|
11
3NC-F3441-00-00
Holder, Handle Upper
|
3NC-F3441-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
91026-08040-00 Bolt, Flange |
91026-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
13
|
13
3BN-23174-00-00
Stay, Headlight
|
3BN-23174-00-00 |
— | ||
|
14
|
14
91026-06012-00 Bolt |
91026-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
15
|
15
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
16
|
16
5T8-F3482-00-00
Body & Key, Steering Lock
|
5T8-F3482-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4CT-F3482-00-00
Body & Key, Steering Lock
|
4CT-F3482-00-00 |
— | ||
|
21
|
21
26A-23318-00-00 Wire, Holder 1 |
26A-23318-00-00 |
from US $23.80 |
||
|
22
|
22
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
22
|
22
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
23
|
23
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
24
|
24
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
90465-14242-00 Clamp |
90465-14242-00 |
from US $4.39 |
||
|
26
|
26
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
27
|
27
3BN-23317-00-00
Holder, Cable
|
3BN-23317-00-00 |
— | ||
