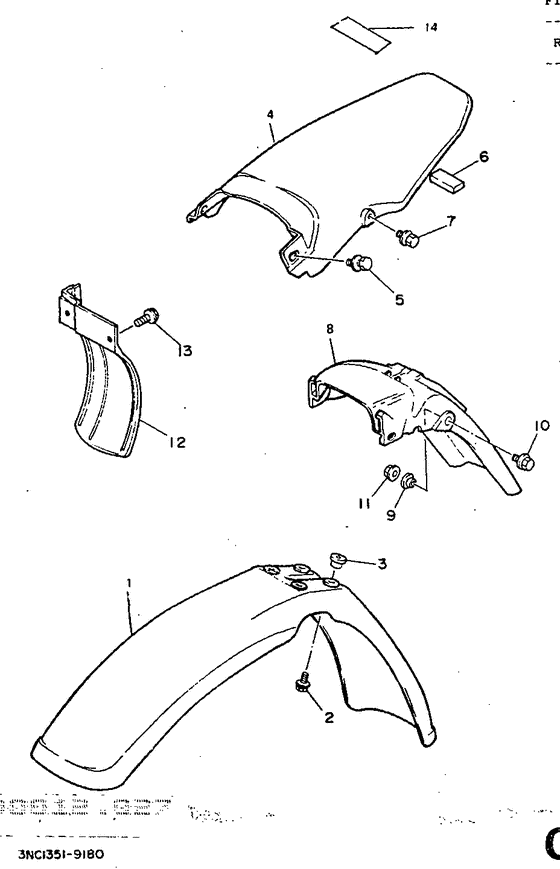

Fender Diagram Yamaha DT125 DT125R
- Year
- 1991
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3PY3
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3NC-F1511-10-00
Fender, Front
Yam. black |
3NC-F1511-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Yam. black |
999-99999-99-00 |
— | ||
|
01
|
01
3NC-F1511-40-00
Fender, Front
P. white |
3NC-F1511-40-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
P. white |
999-99999-99-00 |
— | ||
|
01
|
01
3NC-F1511-50-00
Fender, Front
Deep violet |
3NC-F1511-50-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Deep violet |
999-99999-99-00 |
— | ||
|
02
|
02
901-19060-97-00 Bolt, With Washer |
901-19060-97-00 |
from US $1.70 |
||
| replacements | |||||
|
02
|
02
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
02
|
02
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
|
03
|
03
90387-062V8-00 Collar(2Wg) |
90387-062V8-00 |
from US $3.40 |
||
|
04
|
04
3NC-F1611-10-00
Fender, Rear
Yam. black |
3NC-F1611-10-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Yam. black |
999-99999-99-00 |
— | ||
|
04
|
04
3NC-F1611-40-00
Fender, Rear
P. white |
3NC-F1611-40-00 |
— | ||
| replacement | |||||
|
04
|
04
3BN-21611-40-00
Fender, Rear
P. white |
3BN-21611-40-00 |
— | ||
|
04
|
04
3NC-F1611-50-00
Fender, Rear
Deep violet |
3NC-F1611-50-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Deep violet |
999-99999-99-00 |
— | ||
|
05
|
05
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
05
|
05
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
05
|
05
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
06
|
06
3BN-21639-00-00 Damper 2 |
3BN-21639-00-00 |
US $3.12 |
||
|
07
|
07
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
07
|
07
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
07
|
07
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
08
|
08
3NC-F1685-00-00
Bracket, License
|
3NC-F1685-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90560-08066-00 Collar |
90560-08066-00 |
from US $2.69 |
||
| replacement | |||||
|
09
|
09
90387-08079-00 Collar |
90387-08079-00 |
from US $3.26 |
||
|
10
|
10
95816-08020-00 Bolt, Flange |
95816-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
10
|
10
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
11
|
11
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
11
|
11
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
12
|
12
3BN-21642-00-00
Guard, Flap
|
3BN-21642-00-00 |
— | ||
|
13
|
13
90119-06194-00 Bolt, With Washer |
90119-06194-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
13
|
13
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
14
|
14
3NC-F8391-00-00
Graphic 1
Ur p. white |
3NC-F8391-00-00 |
— | ||
|
14
|
14
3NC-F8391-10-00
Graphic 1
Ur y. black |
3NC-F8391-10-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
Ur y. black |
999-99999-99-00 |
— | ||
|
14
|
14
3NC-F8391-20-00
Graphic 1
Ur d. violet |
3NC-F8391-20-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
Ur d. violet |
999-99999-99-00 |
— | ||
