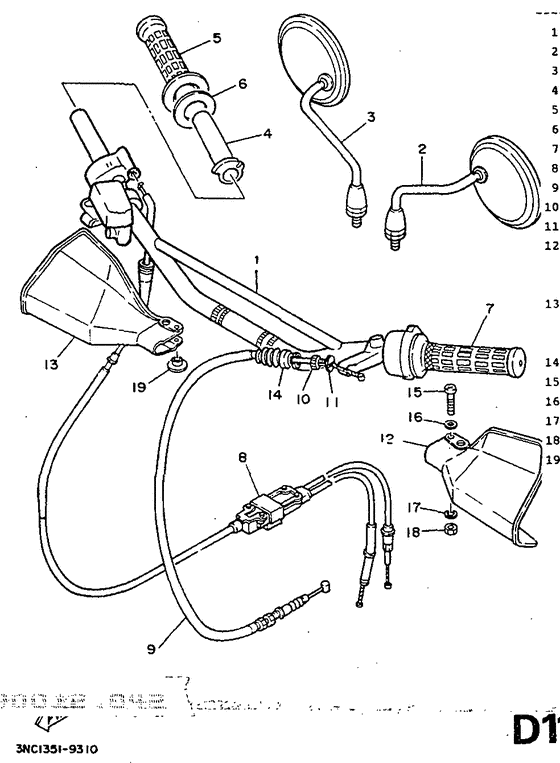

Steering handle & cable Diagram Yamaha DT125 DT125R
- Year
- 1991
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3PY3
- Sales region
- Italy (999)
- Engine Capacity
- 125
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3NC-F6100-13-00
Handle Assy
|
3NC-F6100-13-00 |
— | ||
|
02
|
02
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
03
|
03
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
04
|
04
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
05
|
05
33G-26242-00-00 Grip (Right) |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
05
|
05
33G-26242-01-00 Grip (Right) |
33G-26242-01-00 |
from US $14.09 |
||
|
06
|
06
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
07
|
07
33G-26241-00-00 Grip (Left) |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
07
|
07
33G-26241-01-00 Grip (Left) |
33G-26241-01-00 |
from US $19.94 |
||
|
08
|
08
3ET-26301-00-00 Throttle Cable Assy |
3ET-26301-00-00 |
US $88.70 |
||
| replacement | |||||
|
08
|
08
3ET-26301-11-00 Throttle Cable Assy |
3ET-26301-11-00 |
US $88.70 |
||
|
09
|
09
3BN-26335-00-00 Cable, clutch |
3BN-26335-00-00 |
US $44.90 |
||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
1LN-26141-20-00
Guard, Brush 1
Ur p. white |
1LN-26141-20-00 |
— | ||
|
12
|
12
2KF-26141-00-00 Guard, Brush 1Ur y. black |
2KF-26141-00-00 |
from US $30.33 |
||
|
12
|
12
3BN-26141-30-00
Guard, Brush 1
Ur d. violet |
3BN-26141-30-00 |
— | ||
| replacement | |||||
|
12
|
12
3TB-26141-50-00
Guard, Brush 1
Ur d. violet |
3TB-26141-50-00 |
— | ||
|
13
|
13
1LN-26142-20-00
Guard, Brush 2
Ur p. white |
1LN-26142-20-00 |
— | ||
|
13
|
13
2KF-26142-00-00
Guard, Brush 2
Ur y. black |
2KF-26142-00-00 |
— | ||
|
13
|
13
3BN-26142-30-00
Guard, Brush 2
Ur d. violet |
3BN-26142-30-00 |
— | ||
|
14
|
14
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
98501-06035-00 Screw Pan Head |
98501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
15
|
15
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
15
|
15
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
18
|
18
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
18
|
18
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
19
|
19
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
