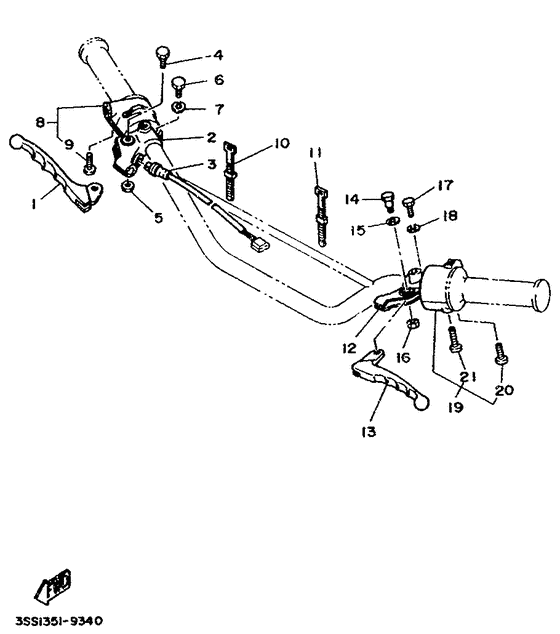

Handle switch & lever Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SS1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2H0-83922-20-00 Lever 2Low gloss black |
2H0-83922-20-00 |
from US $19.27 |
||
| replacement | |||||
|
01
|
01
2H0-83922-31-00 Lever 2Low gloss black |
2H0-83922-31-00 |
from US $18.86 |
||
|
02
|
02
361-82921-31-00 Lever, Holder |
361-82921-31-00 |
from US $44.12 |
||
| replacement | |||||
|
02
|
02
83J-82910-00-00 Lever, Holder |
83J-82910-00-00 |
from US $26.94 |
||
|
03
|
03
1M1-83980-30-00
Front Stop Switch As
|
1M1-83980-30-00 |
— | ||
| replacement | |||||
|
03
|
03
1M1-83980-31-00 Front Stop Switch Assy |
1M1-83980-31-00 |
from US $23.52 |
||
|
04
|
04
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
04
|
04
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
05
|
05
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
06
|
06
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
06
|
06
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
09
|
09
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
09
|
09
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
10
|
10
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
12
|
12
498-82911-00-98 Holder, Lever 1Low gloss black |
498-82911-00-98 |
from US $31.03 |
||
| replacement | |||||
|
12
|
12
3Y6-82911-00-00 Holder, Lever 1Low gloss black |
3Y6-82911-00-00 |
from US $31.03 |
||
|
13
|
13
2H0-83912-20-00 Lever 1Low gloss black |
2H0-83912-20-00 |
from US $19.69 |
||
| replacement | |||||
|
13
|
13
2H0-83912-31-00 Lever 1Low gloss black |
2H0-83912-31-00 |
from US $19.69 |
||
|
14
|
14
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
14
|
14
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
15
|
15
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
1R7-83972-00-00
Switch, Handle 4
|
1R7-83972-00-00 |
— | ||
| replacement | |||||
|
19
|
19
1R7-83972-01-00
Switch, Handle 4
|
1R7-83972-01-00 |
— | ||
|
20
|
20
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
20
|
20
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
21
|
21
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
21
|
21
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
21
|
21
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
