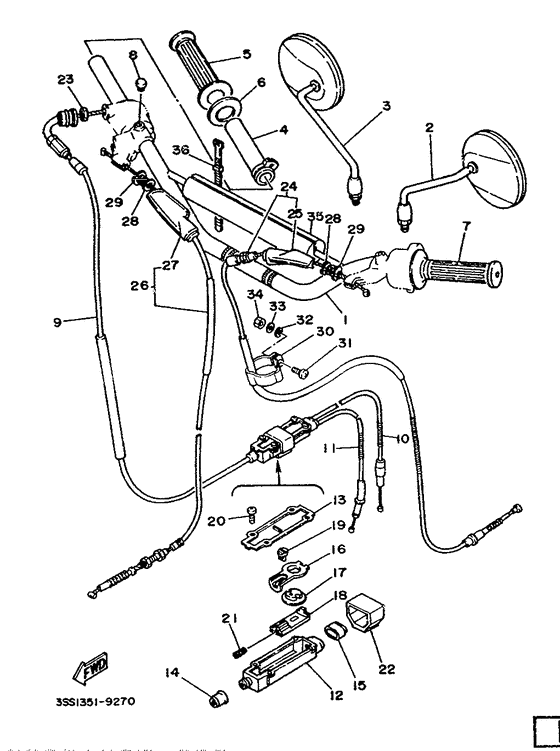

Steering handle & cable Diagram Yamaha DT125 DT125
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SS1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
02
|
02
55Y-26280-00-00
Rear View Mirror Assy(Left)
|
55Y-26280-00-00 |
— | ||
|
03
|
03
55Y-26290-00-00
Rear View Mirror Assy (Right)
|
55Y-26290-00-00 |
— | ||
|
04
|
04
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
05
|
05
1A0-26242-01-00 Grip Rh (R.h.) |
1A0-26242-01-00 |
from US $10.44 |
||
|
06
|
06
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
07
|
07
1E6-26241-00-00 Grip Lh (L.h.) |
1E6-26241-00-00 |
from US $12.46 |
||
|
08
|
08
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
09
|
09
3J0-26311-01-00
Cable, Throttle 1
|
3J0-26311-01-00 |
— | ||
| replacement | |||||
|
09
|
09
3J0-26311-02-00 Cable, Throttle 1 |
3J0-26311-02-00 |
from US $12.12 |
||
|
10
|
10
3J0-26312-01-00
Cable, Throttle 2
|
3J0-26312-01-00 |
— | ||
|
11
|
11
3J0-26321-00-00
Cable, Pump
|
3J0-26321-00-00 |
— | ||
| replacement | |||||
|
11
|
11
18G-26321-10-00 Cable, Pump |
18G-26321-10-00 |
from US $15.16 |
||
|
12
|
12
3J0-26261-00-00 Connector, Cable |
3J0-26261-00-00 |
from US $8.08 |
||
|
13
|
13
3J0-26262-00-00 Cap, Cble Connector |
3J0-26262-00-00 |
from US $7.29 |
||
|
14
|
14
360-26266-00-00 Boot, Cylinder |
360-26266-00-00 |
from US $2.09 |
||
|
15
|
15
3J0-26272-00-00 Cap |
3J0-26272-00-00 |
from US $1.70 |
||
|
16
|
16
2T5-26274-00-00 Guide, Rotor |
2T5-26274-00-00 |
from US $5.99 |
||
|
17
|
17
2T5-26273-00-00 Rotor |
2T5-26273-00-00 |
from US $3.26 |
||
|
18
|
18
2T5-26244-00-00 Slider, Throttle |
2T5-26244-00-00 |
from US $3.72 |
||
|
19
|
19
2T5-26267-00-00 Pin |
2T5-26267-00-00 |
from US $2.02 |
||
|
20
|
20
90167-03004-00 Screw, Tapping |
90167-03004-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
21
|
21
90501-05512-00 Spring, Compression |
90501-05512-00 |
from US $1.70 |
||
|
22
|
22
3J0-26393-00-00 Holder |
3J0-26393-00-00 |
from US $7.51 |
||
|
23
|
23
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
24
|
24
2A6-26335-01-00 Cable, clutch |
2A6-26335-01-00 |
from US $35.99 |
||
|
25
|
25
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
25
|
25
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
26
|
26
2A6-26341-01-00
Cable, Brake
|
2A6-26341-01-00 |
— | ||
|
27
|
27
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
28
|
28
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
28
|
28
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
29
|
29
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
29
|
29
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
30
|
30
2A6-26397-00-00
Clamp
|
2A6-26397-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
31
|
31
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
31
|
31
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
32
|
32
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
32
|
32
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
32
|
32
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
33
|
33
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
33
|
33
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
33
|
33
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
34
|
34
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
35
|
35
2X1-26124-00-00 Protector, Hdlbr |
2X1-26124-00-00 |
from US $18.14 |
||
|
36
|
36
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
