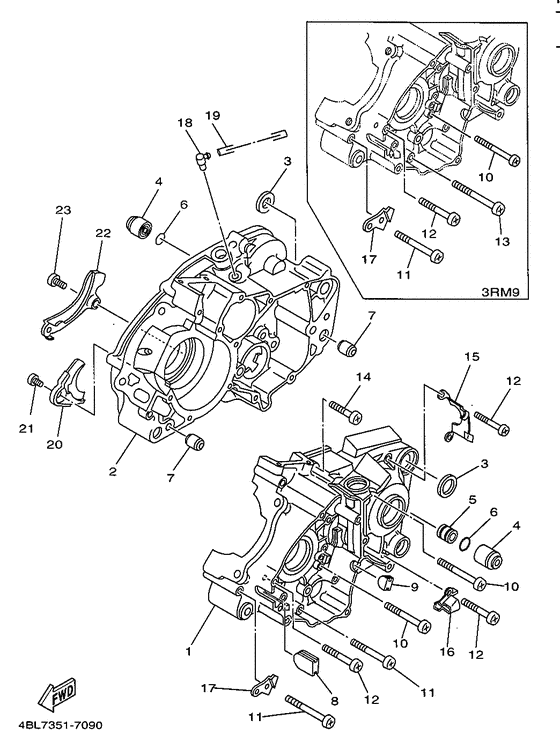

Crankcase Diagram Yamaha DT125 DT125R
- Year
- 1997
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4BL7
- Sales region
- France (010)
- Engine Capacity
- 125
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3MB-15111-02-00
Crankcase 1
|
3MB-15111-02-00 |
— | ||
|
02
|
02
3BN-15121-03-00 Crankcase 2 |
3BN-15121-03-00 |
US $403.11 |
||
| replacement | |||||
|
02
|
02
3BN-15121-04-00 Crankcase 2 |
3BN-15121-04-00 |
US $403.11 |
||
|
03
|
03
90201-170M2-00 Washer, Plate |
90201-170M2-00 |
from US $6.52 |
||
| replacement | |||||
|
03
|
03
90201-16021-00 Washer, Plate |
90201-16021-00 |
from US $6.52 |
||
|
04
|
04
328-15316-00-00
Damper, Engine Mount 1 (328-153)
|
328-15316-00-00 |
— | ||
| replacement | |||||
|
04
|
04
90388-08003-00 Damper |
90388-08003-00 |
from US $21.44 |
||
|
05
|
05
3BN-15317-00-00 Spacer, Engine Mount |
3BN-15317-00-00 |
US $9.11 |
||
|
06
|
06
93210-12095-00 O-Ring |
93210-12095-00 |
US $6.94 |
||
| replacement | |||||
|
06
|
06
93210-11313-00 O-Ring (1J7) |
93210-11313-00 |
from US $6.94 |
||
|
07
|
07
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
08
|
08
3MB-15167-01-00 Plug, Blind 1 |
3MB-15167-01-00 |
US $3.09 |
||
|
09
|
09
3MB-15168-01-00
Plug, Blind 2
|
3MB-15168-01-00 |
— | ||
|
10
|
10
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
11
|
11
98507-06065-00 Screw, Pan Head |
98507-06065-00 |
from US $2.45 |
||
|
12
|
12
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.66 |
||
|
14
|
14
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
15
|
15
90462-08189-00 Clamp |
90462-08189-00 |
US $15.86 |
||
|
16
|
16
90462-10190-00 Clamp |
90462-10190-00 |
US $13.65 |
||
|
17
|
17
3BN-15199-01-00
Bracket
|
3BN-15199-01-00 |
— | ||
|
18
|
18
120-15371-00-00 Breather |
120-15371-00-00 |
US $3.68 |
||
| replacement | |||||
|
18
|
18
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
19
|
19
90446-07349-00 Hose(3Xp) |
90446-07349-00 |
from US $4.25 |
||
|
20
|
20
37F-15128-00-00 Holder |
37F-15128-00-00 |
from US $3.12 |
||
|
21
|
21
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
22
|
22
2RH-15492-00-00
Cover
|
2RH-15492-00-00 |
— | ||
|
23
|
23
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
23
|
23
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
