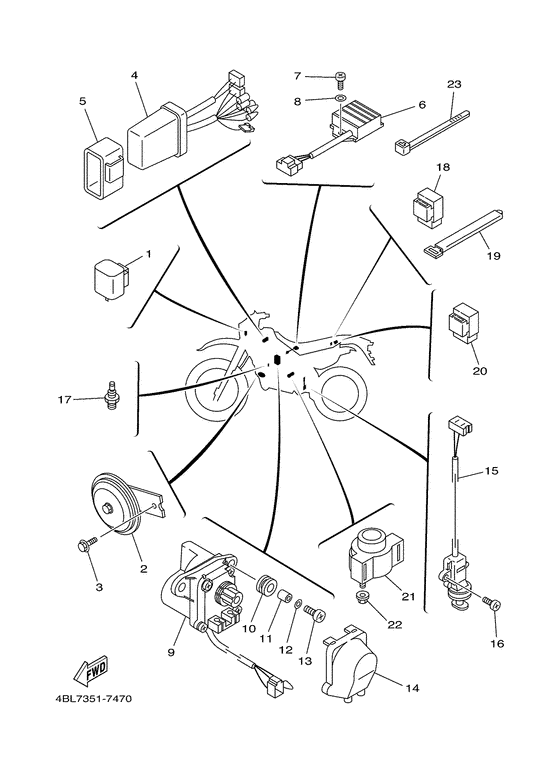

Electrical 2 Diagram Yamaha DT125 DT125R
- Year
- 1997
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4DK7
- Sales region
- Switzerland (010)
- Engine Capacity
- 125
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
02
|
02
3BN-83371-00-00 Horn |
3BN-83371-00-00 |
from US $59.65 |
||
| replacement | |||||
|
02
|
02
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
03
|
03
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
04
|
04
3MB-85540-00-00 C.d.i. Unit Assy |
3MB-85540-00-00 |
US $295.33 |
||
| replacement | |||||
|
04
|
04
3MB-85540-01-00
C.d.i. Unit Assy
|
3MB-85540-01-00 |
— | ||
|
05
|
05
3MB-85546-00-00 Band |
3MB-85546-00-00 |
from US $8.36 |
||
|
06
|
06
3BN-81960-01-00 Rectifier & Regulator Assy |
3BN-81960-01-00 |
US $235.22 |
||
|
07
|
07
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
07
|
07
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
3MB-85820-00-00
Servo Motor Assy
|
3MB-85820-00-00 |
— | ||
| replacements | |||||
|
09
|
09
3MB-85820-02-00
Servo Motor Assy
|
3MB-85820-02-00 |
— | ||
|
09
|
09
3MB-85820-01-00
Servo Motor Assy
|
3MB-85820-01-00 |
— | ||
|
10
|
10
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
11
|
11
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.63 |
||
|
11
|
11
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
34X-85825-01-00 Cover, Wire |
34X-85825-01-00 |
US $18.59 |
||
|
15
|
15
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
15
|
15
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
16
|
16
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
17
|
17
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
18
|
18
1RL-81950-92-00 Relay Assy (1Rl-92) |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
18
|
18
12R-81950-01-00 Relay Assy (12R-01) |
12R-81950-01-00 |
from US $57.75 |
||
|
18
|
18
12R-81950-02-00 RELAY ASSY |
12R-81950-02-00 |
from US $53.20 |
||
|
20
|
20
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
21
|
21
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
21
|
21
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
22
|
22
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
23
|
23
5A8-82591-00-00 Band |
5A8-82591-00-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
