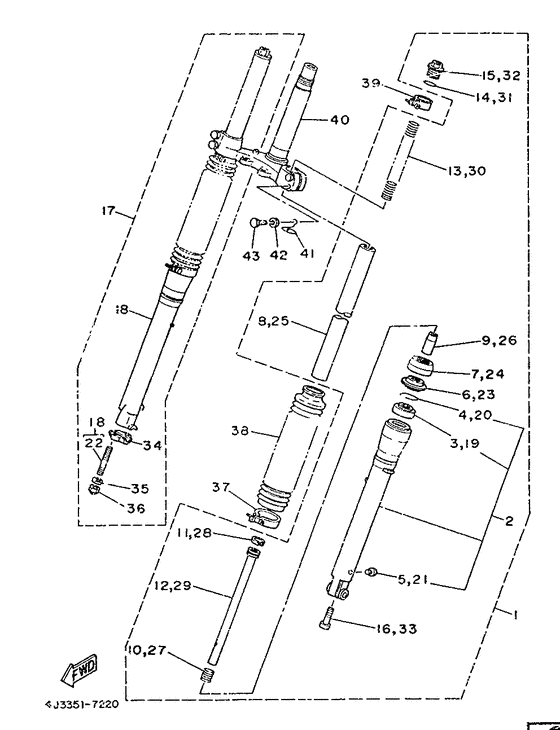

Front fork Diagram Yamaha DT125 DT125
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 4J3
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4J3-23102-00-00
Front Fork Assy (L.h)
|
4J3-23102-00-00 |
— | ||
|
02
|
02
2A6-23126-00-00
Tube, Outer (Left)
|
2A6-23126-00-00 |
— | ||
|
03
|
03
2A6-23145-00-00 Oil Seal |
2A6-23145-00-00 |
from US $32.20 |
||
|
04
|
04
2A6-23156-00-00 Clip, Oil Seal |
2A6-23156-00-00 |
from US $10.06 |
||
|
05
|
05
2A6-23119-00-00 Plug, DrainWith washer |
2A6-23119-00-00 |
from US $9.49 |
||
|
06
|
06
2A6-23144-00-00 Seal, Dust |
2A6-23144-00-00 |
from US $28.28 |
||
|
07
|
07
2A6-23193-00-00
Guide, Boot
|
2A6-23193-00-00 |
— | ||
|
08
|
08
2A6-23124-00-00
Tube, Inner 1
|
2A6-23124-00-00 |
— | ||
|
09
|
09
1L9-23166-00-00 Taper, Spindle |
1L9-23166-00-00 |
US $15.58 |
||
|
10
|
10
2A6-23151-00-00
Spring, Rebound
|
2A6-23151-00-00 |
— | ||
|
11
|
11
2A6-23157-00-00
Ring, Piston Frtfrk
|
2A6-23157-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2A6-23170-00-00
Cylinder, Frtfrk
|
2A6-23170-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2A6-23141-00-00
Spring, Front Fork
|
2A6-23141-00-00 |
— | ||
|
14
|
14
2A6-23147-00-00
O-Ring
|
2A6-23147-00-00 |
— | ||
|
15
|
15
2A6-23111-00-00
Bolt, Cap
|
2A6-23111-00-00 |
— | ||
|
16
|
16
1E7-23181-00-00 Bolt, Hexagon Socket Head |
1E7-23181-00-00 |
from US $5.29 |
||
| replacement | |||||
|
16
|
16
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
17
|
17
4J3-23103-00-00
Front Fork Assy (R.h)
|
4J3-23103-00-00 |
— | ||
|
18
|
18
2A6-23136-00-00
Tube, Outer (Right)
|
2A6-23136-00-00 |
— | ||
|
19
|
19
2A6-23145-00-00 Oil Seal |
2A6-23145-00-00 |
from US $32.20 |
||
|
20
|
20
2A6-23156-00-00 Clip, Oil Seal |
2A6-23156-00-00 |
from US $10.06 |
||
|
21
|
21
2A6-23119-00-00 Plug, DrainWith washer |
2A6-23119-00-00 |
from US $9.49 |
||
|
22
|
22
90116-08260-00
Bolt, Stud
|
90116-08260-00 |
— | ||
|
23
|
23
2A6-23144-00-00 Seal, Dust |
2A6-23144-00-00 |
from US $28.28 |
||
|
24
|
24
2A6-23193-00-00
Guide, Boot
|
2A6-23193-00-00 |
— | ||
|
25
|
25
2A6-23124-00-00
Tube, Inner 1
|
2A6-23124-00-00 |
— | ||
|
26
|
26
1L9-23166-00-00 Taper, Spindle |
1L9-23166-00-00 |
US $15.58 |
||
|
27
|
27
2A6-23151-00-00
Spring, Rebound
|
2A6-23151-00-00 |
— | ||
|
28
|
28
2A6-23157-00-00
Ring, Piston Frtfrk
|
2A6-23157-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
2A6-23170-00-00
Cylinder, Frtfrk
|
2A6-23170-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
2A6-23141-00-00
Spring, Front Fork
|
2A6-23141-00-00 |
— | ||
|
31
|
31
2A6-23147-00-00
O-Ring
|
2A6-23147-00-00 |
— | ||
|
32
|
32
2A6-23111-00-00
Bolt, Cap
|
2A6-23111-00-00 |
— | ||
|
33
|
33
1E7-23181-00-00 Bolt, Hexagon Socket Head |
1E7-23181-00-00 |
from US $5.29 |
||
| replacement | |||||
|
33
|
33
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
34
|
34
2A6-23167-01-00
Holder, Axle
|
2A6-23167-01-00 |
— | ||
|
35
|
35
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
36
|
36
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
36
|
36
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
36
|
36
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
37
|
37
2A6-23489-01-00 Band |
2A6-23489-01-00 |
US $5.81 |
||
| replacement | |||||
|
37
|
37
3RW-23192-00-00 Band |
3RW-23192-00-00 |
from US $5.81 |
||
|
38
|
38
4J3-23191-00-00
Boot
|
4J3-23191-00-00 |
— | ||
|
39
|
39
2A6-23192-01-00 Band |
2A6-23192-01-00 |
US $5.81 |
||
| replacement | |||||
|
39
|
39
3RW-23192-00-00 Band |
3RW-23192-00-00 |
from US $5.81 |
||
|
40
|
40
2A6-23340-00-90
Under Bracket (2A6-23340-0
Uni chrome black |
2A6-23340-00-90 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
Uni chrome black |
999-99999-99-00 |
— | ||
|
41
|
41
2A6-23317-00-00
Holder, Cable
|
2A6-23317-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
2A6-23346-00-00 Bolt |
2A6-23346-00-00 |
from US $4.68 |
||
| replacement | |||||
|
43
|
43
970-24080-35-00 Bolt |
970-24080-35-00 |
from US $4.68 |
||
