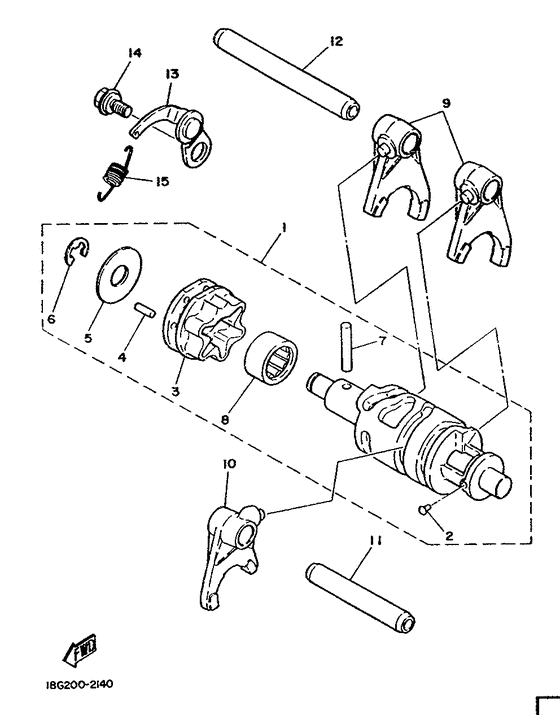

Shift Cam & Fork Diagram Yamaha DT125 DT125
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 4J3
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1W1-18540-00-00 Shift Cam Assembly |
1W1-18540-00-00 |
from US $128.35 |
||
|
02
|
02
136-18542-00-00 Point, Neutral |
136-18542-00-00 |
from US $1.98 |
||
|
03
|
03
1W1-18185-00-00 Segment |
1W1-18185-00-00 |
from US $42.75 |
||
|
04
|
04
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.39 |
||
|
05
|
05
1W1-18561-00-00 Plate, Side 1 |
1W1-18561-00-00 |
from US $2.69 |
||
|
06
|
06
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
07
|
07
93604-30018-00 Pin, Dowel |
93604-30018-00 |
from US $2.55 |
||
|
08
|
08
93315-21813-00 Bearing |
93315-21813-00 |
from US $8.08 |
||
|
09
|
09
2A6-18511-00-00 Fork, Shift 1 |
2A6-18511-00-00 |
from US $42.59 |
||
|
10
|
10
2A6-18512-00-00 Fork, Shift 2 |
2A6-18512-00-00 |
from US $43.87 |
||
|
11
|
11
2A6-18531-00-00 Bar, Shift Fork Guide 1 |
2A6-18531-00-00 |
from US $18.99 |
||
|
12
|
12
2A6-18535-00-00 Bar, Shift Fork Guide 2 |
2A6-18535-00-00 |
from US $6.74 |
||
|
13
|
13
1W1-18140-00-00 Stopper Lever Assembly |
1W1-18140-00-00 |
from US $18.84 |
||
|
14
|
14
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
|
15
|
15
90506-09156-00 Spring, Tension |
90506-09156-00 |
from US $2.41 |
||
