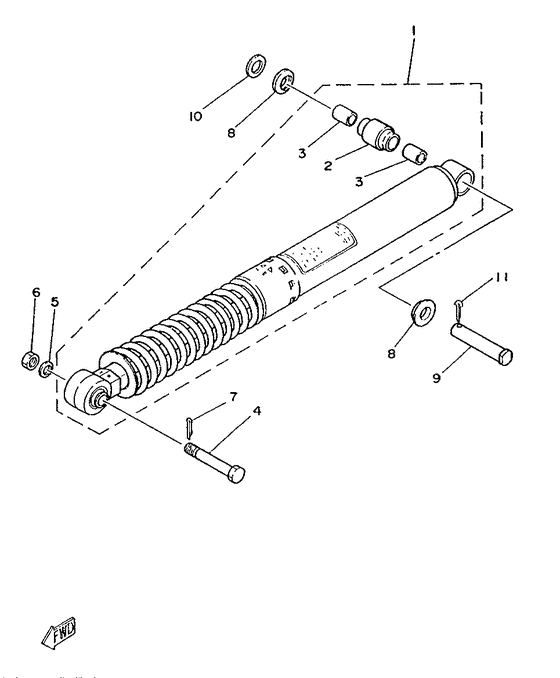

Rear suspension Diagram Yamaha DT125 DT125
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 4J3
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4F2-22210-00-00
Shock Absorber Assy, Rear
|
4F2-22210-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3YV-22210-00-00
Shock Absorber Assy, Rear
|
3YV-22210-00-00 |
— | ||
|
02
|
02
3R4-22226-00-00 Bush, Shock Abs Lwr |
3R4-22226-00-00 |
from US $38.97 |
||
|
03
|
03
90387-12051-00 Collar |
90387-12051-00 |
US $18 |
||
|
04
|
04
90109-10550-00 Bolt |
90109-10550-00 |
from US $8.86 |
||
| replacement | |||||
|
04
|
04
90109-10453-00 Bolt (1M1) |
90109-10453-00 |
from US $10.48 |
||
|
05
|
05
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
05
|
05
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
06
|
06
95302-10700-00 Nut, Hexagon |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
06
|
06
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
06
|
06
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
07
|
07
91401-20025-00 Pin, Cotter |
91401-20025-00 |
US $2.27 |
||
| replacement | |||||
|
07
|
07
914-90200-35-00 Pin, Cotter (91401-20030-00) |
914-90200-35-00 |
from US $2.27 |
||
|
08
|
08
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
09
|
09
90240-12075-00 Pin, Clevis |
90240-12075-00 |
from US $9.07 |
||
|
10
|
10
92901-12600-00 Washer, Plate |
92901-12600-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
11
|
11
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
