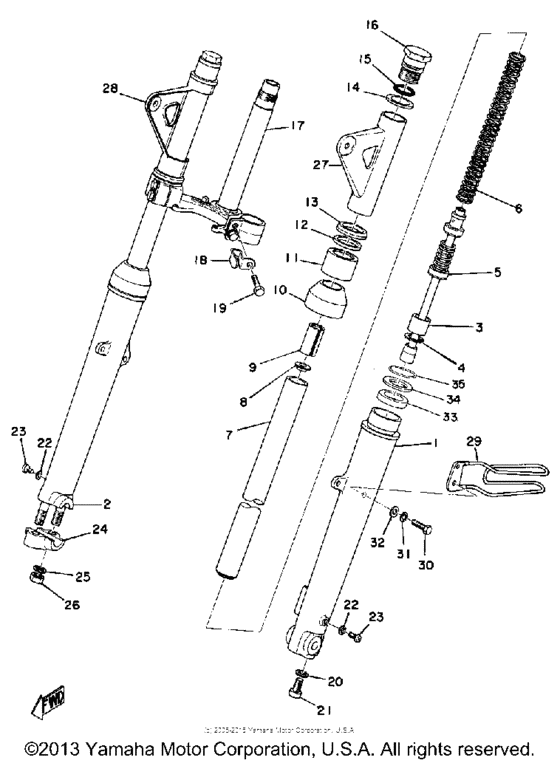

Front fork Diagram Yamaha DT125 DT125
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
315-23126-50-00
Tube, Outer 1
|
315-23126-50-00 |
— | ||
|
1
|
1
443-23101-01-00
Front Fork Assembly
|
443-23101-01-00 |
— | ||
|
2
|
2
315-23136-50-00
Tube, Outer 2
|
315-23136-50-00 |
— | ||
|
3
|
3
315-23171-50-00
Piston, Front Fork
|
315-23171-50-00 |
— | ||
|
4
|
4
535-23183-01-00
Circlip
|
535-23183-01-00 |
— | ||
|
5
|
5
443-23170-01-00
Cylinder, Frtfrk
|
443-23170-01-00 |
— | ||
|
6
|
6
318-23141-00-00
Spring, Front Fork
|
318-23141-00-00 |
— | ||
|
7
|
7
315-23124-50-00
Tube, Inner 1
|
315-23124-50-00 |
— | ||
|
8
|
8
248-23142-00-00
Seat, Spring Upper
|
248-23142-00-00 |
— | ||
|
9
|
9
443-23118-01-00
Spacer
|
443-23118-01-00 |
— | ||
|
10
|
10
248-23144-00-00 Seal, Dust |
248-23144-00-00 |
from US $35.20 |
||
|
11
|
11
248-23122-01-00
Cover, Outer 1
|
248-23122-01-00 |
— | ||
|
12
|
12
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
13
|
13
248-23116-01-00
Guide, Cover Lower
|
248-23116-01-00 |
— | ||
|
14
|
14
248-23115-01-00
Guide, Cover Upper
|
248-23115-01-00 |
— | ||
|
15
|
15
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
16
|
16
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
460-23340-30-33
Under Bracket
|
460-23340-30-33 |
— | ||
|
18
|
18
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
19
|
19
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
20
|
20
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
21
|
21
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
21
|
21
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.52 |
||
|
22
|
22
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
23
|
23
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
24
|
24
315-23167-51-00
Holder, Axle
|
315-23167-51-00 |
— | ||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
27
|
27
438-23121-00-20
Cover, Upper 1
CRYSTAL BLACK |
438-23121-00-20 |
— | ||
|
28
|
28
438-23131-00-20
Cover, Upper 2
CRYSTAL BLACK |
438-23131-00-20 |
— | ||
|
29
|
29
437-23318-00-00 Holder, Cable 1 |
437-23318-00-00 |
US $33.72 |
||
|
30
|
30
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
30
|
30
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
33
|
33
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
34
|
34
315-23146-50-00
Washer, Oil Seal
|
315-23146-50-00 |
— | ||
|
35
|
35
315-23156-50-00
Clip, Oil Seal
|
315-23156-50-00 |
— | ||
