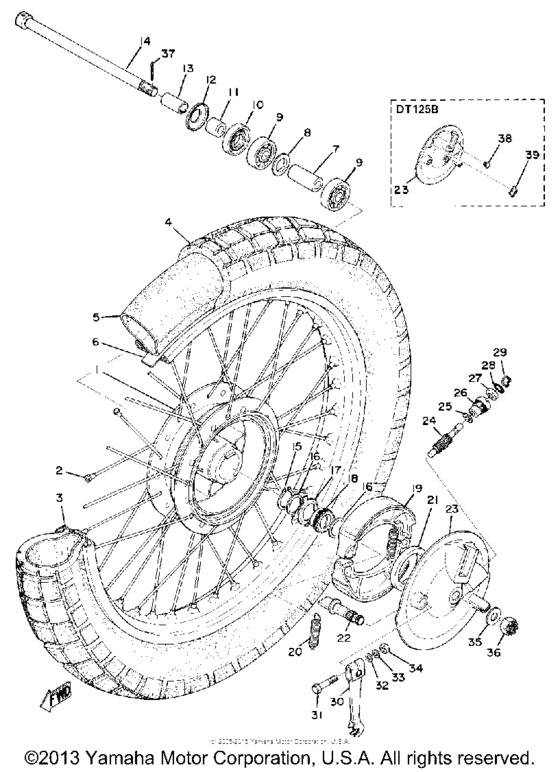

Front wheel Diagram Yamaha DT125 DT125
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
183-25111-00-00
Hub, Front
|
183-25111-00-00 |
— | ||
|
2
|
2
443-25104-00-00
Spoke Set, Front
|
443-25104-00-00 |
— | ||
|
2
|
2
443-25197-90-00
Spoke Set, Outer 1
|
443-25197-90-00 |
— | ||
|
2
|
2
443-25196-90-00
Spoke Set, Inner 1
|
443-25196-90-00 |
— | ||
|
3
|
3
944-16191-16-00 Rim 1.60X191.60X19 |
944-16191-16-00 |
US $150.59 |
||
|
4
|
4
941-30193-18-00
300X19 Yoko Y620
Y620 |
941-30193-18-00 |
— | ||
|
5
|
5
94230-19047-00
Tube (3.00-19)
|
94230-19047-00 |
— | ||
|
6
|
6
943-30190-35-00 Band Rim |
943-30190-35-00 |
US $4.39 |
||
|
7
|
7
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
7
|
7
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
9
|
9
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
9
|
9
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
10
|
10
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
11
|
11
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
12
|
12
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
13
|
13
90387-12100-00
Collar
|
90387-12100-00 |
— | ||
|
14
|
14
401-25181-01-00 Axle, Wheel |
401-25181-01-00 |
from US $55.68 |
||
|
15
|
15
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
16
|
16
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
17
|
17
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
18
|
18
301-25135-00-00 Gear, Drive |
301-25135-00-00 |
US $31.03 |
||
|
19
|
19
183-W2536-00-00
Brake Shoe Set-2Pcs
|
183-W2536-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
20
|
20
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
21
|
21
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
22
|
22
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
23
|
23
443-25120-10-00
Brake Shoe Plt Assembly
|
443-25120-10-00 |
— | ||
|
24
|
24
301-25138-00-00 Gear, Meter |
301-25138-00-00 |
US $26.07 |
||
|
25
|
25
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
26
|
26
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
27
|
27
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
28
|
28
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
28
|
28
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
29
|
29
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
30
|
30
214-25155-01-00
Lever, Camshaft 1
|
214-25155-01-00 |
— | ||
|
31
|
31
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
31
|
31
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
35
|
35
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
36
|
36
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
36
|
36
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
37
|
37
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
37
|
37
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
38
|
38
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
39
|
39
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
