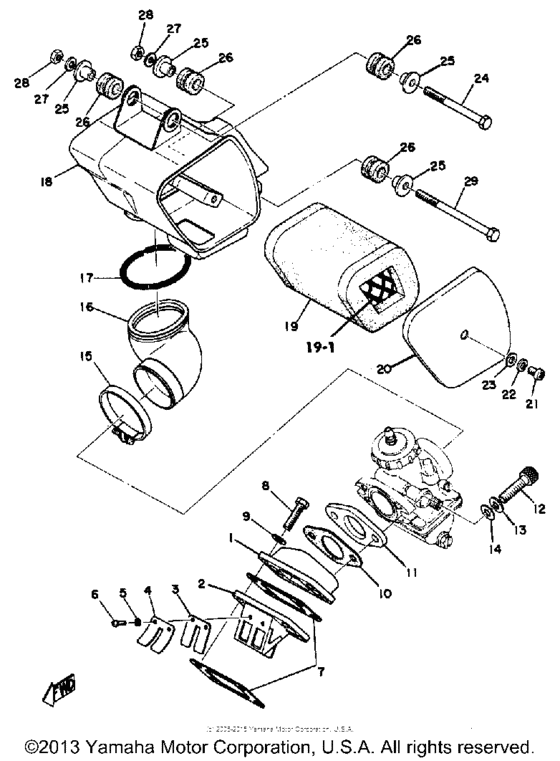

Intake Diagram Yamaha DT125 DT125
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
314-13565-00-00
Joint, Carburetor
|
314-13565-00-00 |
— | ||
|
2
|
2
314-13610-01-00 Reed Valve Assembly |
314-13610-01-00 |
from US $134.50 |
||
| replacement | |||||
|
2
|
2
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $217.13 |
||
|
3
|
3
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
4
|
4
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
4
|
4
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
7
|
7
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
248-13556-70-00 Gasket,manifold |
248-13556-70-00 |
from US $6.23 |
||
| replacement | |||||
|
10
|
10
248-13556-71-00 Gasket, Manifold |
248-13556-71-00 |
from US $4.56 |
||
|
11
|
11
315-13555-00-00
Manifold, Intake
|
315-13555-00-00 |
— | ||
|
12
|
12
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
12
|
12
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $3.72 |
||
|
16
|
16
314-14453-00-00
Joint, Air Clnr 1
|
314-14453-00-00 |
— | ||
|
17
|
17
90506-06106-00 Spring, Tension |
90506-06106-00 |
from US $4.25 |
||
|
18
|
18
392-14411-00-00
Case, Air Cleaner 1
|
392-14411-00-00 |
— | ||
|
19
|
19
560-14451-09-00 Element, Air Clnr |
560-14451-09-00 |
from US $22.09 |
||
| replacement | |||||
|
19
|
19
560-14451-08-00 |
560-14451-08-00 |
US $23.35 |
||
|
20
|
20
392-14412-00-00
Cap, Cleaner Case 1
|
392-14412-00-00 |
— | ||
|
21
|
21
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
973-13060-70-00
Nut (97301-06070)
|
973-13060-70-00 |
— | ||
| replacement | |||||
|
24
|
24
97013-06070-00 Bolt |
97013-06070-00 |
from US $3.64 |
||
|
25
|
25
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
26
|
26
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
29
|
29
97311-06090-00 Bolt (4L3) |
97311-06090-00 |
from US $1.53 |
||
| replacement | |||||
|
29
|
29
97017-06090-00 Bolt(3Gg) |
97017-06090-00 |
from US $2.55 |
||
