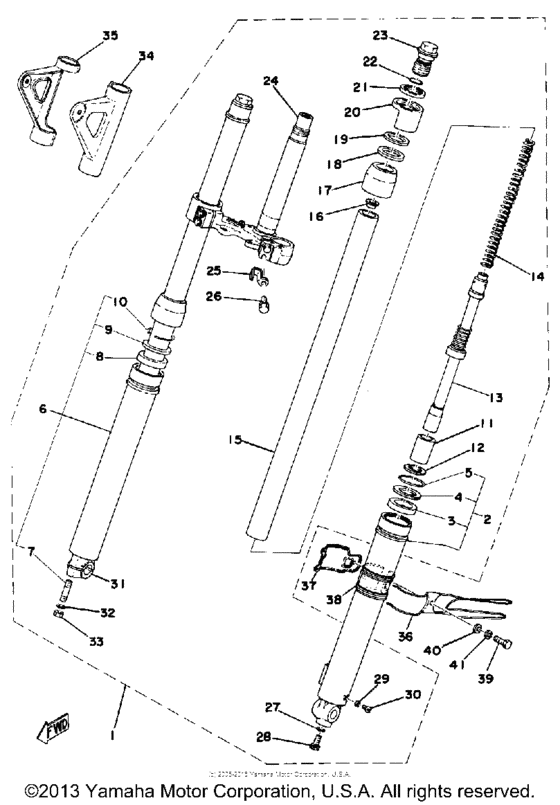

Front fork Diagram Yamaha DT125 DT125
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54V-83550-01-00 Spdmtr CableIN PRICE BOOK |
54V-83550-01-00 |
from US $36.06 |
||
| replacement | |||||
|
1
|
1
3KJ-83550-01-00 Speedometer Cable AssyIN PRICE BOOK |
3KJ-83550-01-00 |
from US $25.16 |
||
|
2
|
2
559-23126-00-00
Tube, Outer 1
|
559-23126-00-00 |
— | ||
|
3
|
3
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
4
|
4
315-23146-50-00
Washer, Oil Seal
|
315-23146-50-00 |
— | ||
|
5
|
5
315-23156-50-00
Clip, Oil Seal
|
315-23156-50-00 |
— | ||
|
6
|
6
559-23136-00-00
Tube, Outer 2
|
559-23136-00-00 |
— | ||
|
7
|
7
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
8
|
8
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
9
|
9
315-23146-50-00
Washer, Oil Seal
|
315-23146-50-00 |
— | ||
|
10
|
10
315-23156-50-00
Clip, Oil Seal
|
315-23156-50-00 |
— | ||
|
11
|
11
535-23171-00-00
Piston, Front Fork
|
535-23171-00-00 |
— | ||
|
12
|
12
535-23183-01-00
Circlip
|
535-23183-01-00 |
— | ||
|
13
|
13
525-23170-00-00
Cylinder, Frtfrk
|
525-23170-00-00 |
— | ||
|
14
|
14
559-23141-00-00
Spring, Front Fork
|
559-23141-00-00 |
— | ||
|
15
|
15
525-23124-00-00
Tube, Inner 1
|
525-23124-00-00 |
— | ||
|
16
|
16
304-23142-50-00
Seat, Spring Upper
|
304-23142-50-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
535-23144-00-00 Seal, Dust |
535-23144-00-00 |
from US $16.16 |
||
| replacement | |||||
|
17
|
17
535-F3144-00-00
Seal Dust (535-23144-00) Dt100
|
535-F3144-00-00 |
— | ||
|
18
|
18
437-23163-00-00
Gasket
|
437-23163-00-00 |
— | ||
|
19
|
19
437-23161-00-00
Washer, Light Stay
|
437-23161-00-00 |
— | ||
|
20
|
20
304-23122-50-00
Cover, Outer 1
|
304-23122-50-00 |
— | ||
|
21
|
21
248-23115-01-00
Guide, Cover Upper
|
248-23115-01-00 |
— | ||
|
22
|
22
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
23
|
23
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
559-23340-00-33
Under Bracket
|
559-23340-00-33 |
— | ||
|
25
|
25
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
26
|
26
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
27
|
27
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
28
|
28
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
28
|
28
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.52 |
||
|
29
|
29
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
30
|
30
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
31
|
31
315-23167-51-00
Holder, Axle
|
315-23167-51-00 |
— | ||
|
32
|
32
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
33
|
33
90170-08176-00 Nut, Hexagon |
90170-08176-00 |
US $3.40 |
||
| replacement | |||||
|
33
|
33
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
34
|
34
438-23121-00-20
Cover, Upper 1
CRYSTAL SILVER |
438-23121-00-20 |
— | ||
|
35
|
35
438-23131-00-20
Cover, Upper 2
CRYSTAL SILVER |
438-23131-00-20 |
— | ||
|
36
|
36
559-23318-00-00
Holder, Cable 1
|
559-23318-00-00 |
— | ||
|
37
|
37
559-23319-00-00
Holder, Cable 2
|
559-23319-00-00 |
— | ||
|
38
|
38
559-21541-00-00 Damper 1 |
559-21541-00-00 |
from US $16.01 |
||
|
39
|
39
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
39
|
39
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
40
|
40
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
40
|
40
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
41
|
41
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
