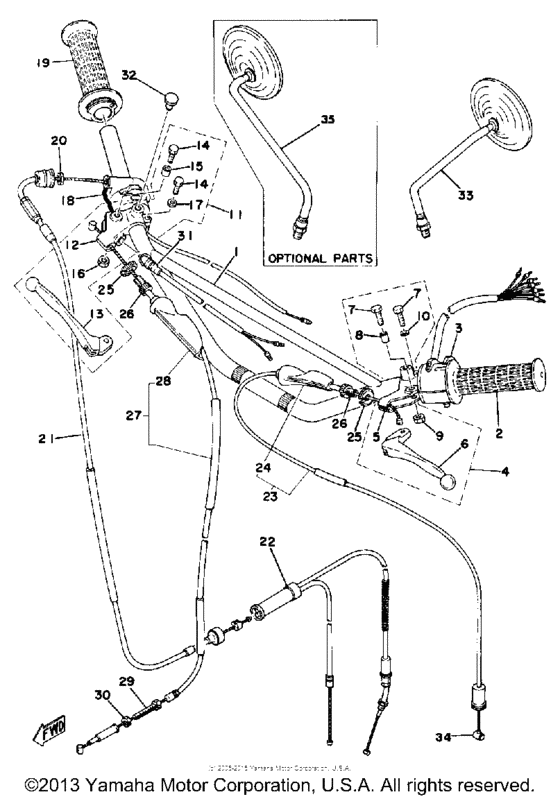

Handle-wire Diagram Yamaha DT125 DT125
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W8-26111-00-00
Handlebar
|
2W8-26111-00-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
444-83972-04-00
Switch, Handle 4
|
444-83972-04-00 |
— | ||
|
4
|
4
498-82910-11-00
Lever Holder Assembly 1
|
498-82910-11-00 |
— | ||
|
5
|
5
3Y6-82911-00-00 Holder, Lever 1 |
3Y6-82911-00-00 |
from US $31.03 |
||
|
6
|
6
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
7
|
7
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
7
|
7
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
8
|
8
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
9
|
9
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
9
|
9
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
12
|
12
361-82920-93-00
Holder, Lever 2 (36182-92131-
36182-92131- |
361-82920-93-00 |
— | ||
|
13
|
13
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
14
|
14
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
14
|
14
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
15
|
15
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
444-83975-02-00
Switch, Handle 2
|
444-83975-02-00 |
— | ||
|
19
|
19
437-26240-20-00
Grip Assembly
|
437-26240-20-00 |
— | ||
|
20
|
20
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
21
|
21
443-26311-00-00
Cable, Throttle 1
|
443-26311-00-00 |
— | ||
|
22
|
22
560-26312-00-00
Cable, Throttle 2
|
560-26312-00-00 |
— | ||
|
23
|
23
444-26335-01-00
Cable, clutch
|
444-26335-01-00 |
— | ||
|
24
|
24
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
24
|
24
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
25
|
25
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
25
|
25
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
26
|
26
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
26
|
26
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
27
|
27
443-26341-01-00
Cable, Brake
|
443-26341-01-00 |
— | ||
|
28
|
28
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
29
|
29
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
30
|
30
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
31
|
31
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
31
|
31
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
32
|
32
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
33
|
33
341-26290-10-00
Mirror Assembly Lh
LH |
341-26290-10-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
34
|
34
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
34
|
34
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
35
|
35
341-26290-01-00
Back Mirror Rh (341-26290-01)
RH 341-26290-01 |
341-26290-01-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
RH 341-26290-01 |
999-99999-99-00 |
— | ||
