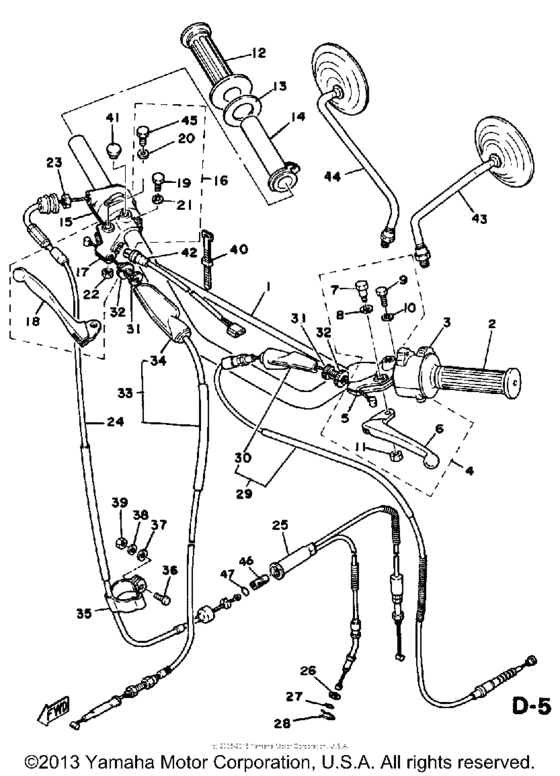

Handle-wire Diagram Yamaha DT125 DT125
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
1R6-83972-00-00
Switch,handle 4
2759 |
1R6-83972-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3G7-83972-01-00
ENGINE CONTROL UNIT
2759 |
3G7-83972-01-00 |
— | ||
|
3
|
3
1M1-83973-50-00
Switch, Handle 3
7605 FOR DAYLIGHT USE |
1M1-83973-50-00 |
— | ||
|
4
|
4
498-82910-20-00
Lever Holder Assembly 1
|
498-82910-20-00 |
— | ||
|
5
|
5
3Y6-82911-00-00 Holder, Lever 1 |
3Y6-82911-00-00 |
from US $31.03 |
||
|
6
|
6
1J3-83912-20-00 Lever L |
1J3-83912-20-00 |
from US $27.77 |
||
|
7
|
7
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
7
|
7
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
8
|
8
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
9
|
9
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
9
|
9
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
1A0-26242-01-00 Grip Rh (R.h.)RH |
1A0-26242-01-00 |
from US $10.44 |
||
|
13
|
13
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
14
|
14
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
15
|
15
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
16
|
16
2A6-W8292-01-00
Lever Holder Assembly R (2A6-82
2A6-82 |
2A6-W8292-01-00 |
— | ||
|
17
|
17
361-82920-93-00
Holder, Lever 2 (36182-92131-
|
361-82920-93-00 |
— | ||
|
18
|
18
2A6-83922-00-00 Lever R |
2A6-83922-00-00 |
from US $24.23 |
||
|
19
|
19
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
19
|
19
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
20
|
20
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
23
|
23
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
24
|
24
2A6-26311-00-00
Cable, Throttle 1
|
2A6-26311-00-00 |
— | ||
|
25
|
25
2A6-26312-00-00
Cable, Throttle 2
|
2A6-26312-00-00 |
— | ||
|
26
|
26
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
27
|
27
93210-07100-00 O-Ring |
93210-07100-00 |
from US $2.36 |
||
|
28
|
28
90468-08086-00 Clip |
90468-08086-00 |
from US $2.02 |
||
|
29
|
29
2A6-26335-01-00 Cable, clutch |
2A6-26335-01-00 |
from US $35.99 |
||
|
30
|
30
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
30
|
30
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
31
|
31
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
31
|
31
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
32
|
32
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
32
|
32
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
33
|
33
2A6-26341-01-00
Cable, Brake
|
2A6-26341-01-00 |
— | ||
|
34
|
34
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
35
|
35
2A6-26397-00-00
Clamp
|
2A6-26397-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
36
|
36
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
36
|
36
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
37
|
37
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
37
|
37
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
37
|
37
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
38
|
38
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
39
|
39
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
40
|
40
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
41
|
41
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
42
|
42
1M1-83980-30-00
Front Stop Switch As
AS |
1M1-83980-30-00 |
— | ||
| replacement | |||||
|
42
|
42
1M1-83980-31-00 Front Stop Switch AssyAS |
1M1-83980-31-00 |
from US $23.52 |
||
|
43
|
43
1Y1-26290-10-00 Mirror Assembly Lh (TOYO)LH CONVEX MIRROR |
1Y1-26290-10-00 |
from US $17.18 |
||
|
44
|
44
1Y1-26290-00-00 Mirror Assembly Rh (TOYO)RH OPTIONAL PART CONVEX MIRROR |
1Y1-26290-00-00 |
from US $18.28 |
||
|
45
|
45
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
45
|
45
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
46
|
46
1M1-26263-00-00
Piece, Connecting
|
1M1-26263-00-00 |
— | ||
|
47
|
47
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
