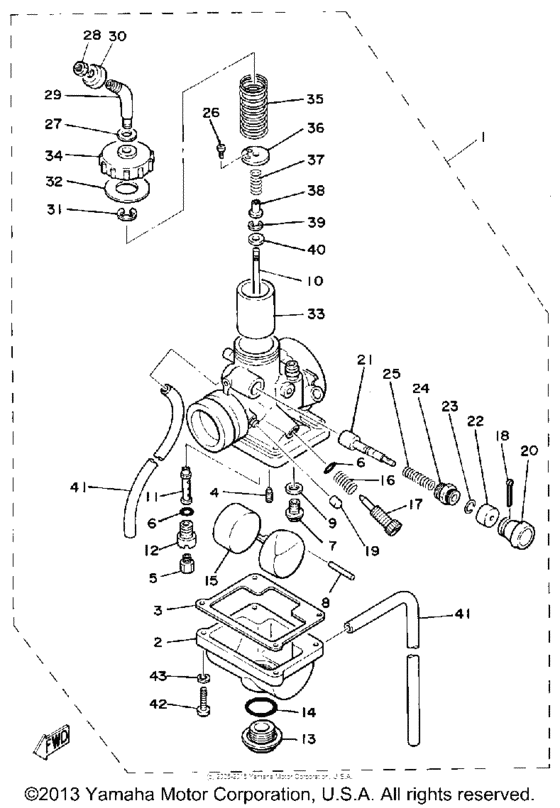

Carburetor Diagram Yamaha DT125 DT125
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-14101-00-00
Carburetor Assembly 1
|
3J0-14101-00-00 |
— | ||
|
2
|
2
539-14181-04-00
Body, Float Chmbr 1
|
539-14181-04-00 |
— | ||
|
3
|
3
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $4.04 |
||
|
4
|
4
260-14142-20-A0 Jet, Pilot #20#20. |
260-14142-20-A0 |
from US $11.21 |
||
|
5
|
5
137-14143-24-00 Jet, Main (#120)Jet, main (120) #120 #120 |
137-14143-24-00 |
from US $7.36 |
||
|
6
|
6
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
7
|
7
31J-14107-20-00 Needle Valve Assembly |
31J-14107-20-00 |
from US $45.68 |
||
|
8
|
8
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
9
|
9
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
10
|
10
452-14116-11-00
Needle
|
452-14116-11-00 |
— | ||
|
11
|
11
3J0-14141-28-00
Nozzle, Main
|
3J0-14141-28-00 |
— | ||
|
12
|
12
2N4-14145-00-00 Setter, Needle Jet |
2N4-14145-00-00 |
from US $11.12 |
||
|
13
|
13
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
14
|
14
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
15
|
15
304-14185-00-00 Float |
304-14185-00-00 |
from US $26.95 |
||
| replacement | |||||
|
15
|
15
4NR-14185-00-00 Float |
4NR-14185-00-00 |
from US $40.48 |
||
|
16
|
16
493-14133-00-00 Spring, Throttle Stop |
493-14133-00-00 |
US $10.43 |
||
|
17
|
17
493-14122-00-00
Screw, Throttle
|
493-14122-00-00 |
— | ||
|
18
|
18
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
19
|
19
895-14169-00-00 Cap |
895-14169-00-00 |
from US $3.38 |
||
|
20
|
20
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
21
|
21
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
22
|
22
3A3-14173-00-00
Cover, Plunger Cap
|
3A3-14173-00-00 |
— | ||
|
23
|
23
152-14138-00-00
Clip, Plunger
|
152-14138-00-00 |
— | ||
|
24
|
24
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
25
|
25
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
26
|
26
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
27
|
27
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
28
|
28
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
29
|
29
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
30
|
30
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
30
|
30
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
31
|
31
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
32
|
32
3A3-14126-00-00
Gasket
|
3A3-14126-00-00 |
— | ||
|
33
|
33
3A3-14112-25-00
Valve, Throttle 1
|
3A3-14112-25-00 |
— | ||
|
34
|
34
1T9-14158-00-00
Top, Mixing Chamber
|
1T9-14158-00-00 |
— | ||
|
35
|
35
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
36
|
36
3A3-14136-00-00
Seat, Spring
|
3A3-14136-00-00 |
— | ||
|
37
|
37
2N6-14589-01-00
Spring
|
2N6-14589-01-00 |
— | ||
|
38
|
38
2N6-14227-01-00
Washer
|
2N6-14227-01-00 |
— | ||
|
39
|
39
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
39
|
39
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
40
|
40
2N6-14918-01-00
Ring
|
2N6-14918-01-00 |
— | ||
|
41
|
41
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
42
|
42
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
42
|
42
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
43
|
43
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
