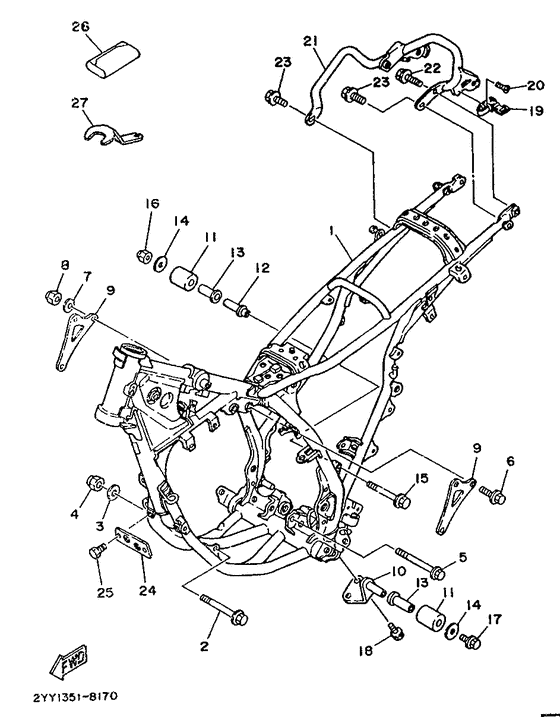

Frame Diagram Yamaha DT200
- Year
- 1988
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 2YY1
- Sales region
- France (999)
- Engine Capacity
- 200
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2YY-21110-00-UJ
Frame Comp
Radical white |
2YY-21110-00-UJ |
— | ||
|
02
|
02
90105-10052-00 Bolt,washer Based |
90105-10052-00 |
from US $7.24 |
||
| replacement | |||||
|
02
|
02
90109-101A0-00 Bolt(30W) |
90109-101A0-00 |
from US $9.21 |
||
|
03
|
03
902-01100-E9-00
Washer, Plate
|
902-01100-E9-00 |
— | ||
| replacement | |||||
|
03
|
03
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
04
|
04
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
05
|
05
90105-08391-00 Bolt, Flange |
90105-08391-00 |
US $7.93 |
||
| replacement | |||||
|
05
|
05
90105-08779-00 Bolt, Washer Based(4Km) |
90105-08779-00 |
US $7.93 |
||
|
06
|
06
958-11080-45-00
Bolt, Flange
|
958-11080-45-00 |
— | ||
| replacements | |||||
|
06
|
06
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $3.05 |
||
|
06
|
06
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.18 |
||
|
07
|
07
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
08
|
08
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
08
|
08
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
09
|
09
3ET-21425-00-00
Bracket, Rear Upper 1
|
3ET-21425-00-00 |
— | ||
|
10
|
10
3BN-2141E-00-00
Bracket 2
|
3BN-2141E-00-00 |
— | ||
|
11
|
11
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
12
|
12
2K7-2148A-00-00 Shaft |
2K7-2148A-00-00 |
from US $13.18 |
||
|
13
|
13
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
14
|
14
90201-08310-00 Washer, Plate |
90201-08310-00 |
from US $1.70 |
||
|
15
|
15
95806-08050-00 Bolt Hexagon |
95806-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
16
|
16
90185-08143-00 Nut, Self-Locking |
90185-08143-00 |
US $1.13 |
||
| replacement | |||||
|
16
|
16
901-85081-31-00 Nut, Self-Locking |
901-85081-31-00 |
US $1.13 |
||
|
17
|
17
95026-08012-00 Bolt, Flange |
95026-08012-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
18
|
18
95826-06012-00 Bolt, Flange |
95826-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
19
|
19
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
19
|
19
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
20
|
20
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
21
|
21
3BN-21190-00-UJ
Rear Frame Comp
Radical white |
3BN-21190-00-UJ |
— | ||
|
22
|
22
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
23
|
23
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
23
|
23
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
23
|
23
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
24
|
24
3ET-2117G-00-00
Protector
|
3ET-2117G-00-00 |
— | ||
|
25
|
25
97301-06008-00 Bolt, Hexagon |
97301-06008-00 |
from US $2.09 |
||
| replacement | |||||
|
25
|
25
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
26
|
26
3BN-28100-00-00 Tool Kit |
3BN-28100-00-00 |
US $68.92 |
||
|
27
|
27
10V-28135-00-00 Spanner, Special |
10V-28135-00-00 |
US $45.14 |
||
