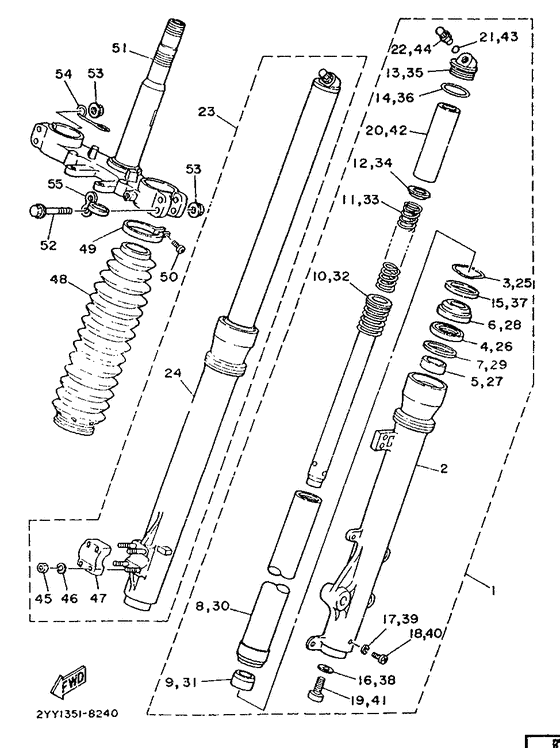

Front fork Diagram Yamaha DT200
- Year
- 1988
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 2YY1
- Sales region
- France (999)
- Engine Capacity
- 200
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2YY-23102-00-00
Front Fork Assy (L.h)
|
2YY-23102-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3BN-23126-00-00 Tube, Outer (L.h) |
3BN-23126-00-00 |
US $278.24 |
||
| replacement | |||||
|
02
|
02
1D0-23126-10-00 Tube, Outer (Left) |
1D0-23126-10-00 |
US $250.99 |
||
|
03
|
03
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
04
|
04
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
04
|
04
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
05
|
05
3BN-23125-00-00 Metal, Slide 1 |
3BN-23125-00-00 |
US $21.11 |
||
| replacement | |||||
|
05
|
05
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
06
|
06
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
07
|
07
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
08
|
08
3BN-23110-00-00 Inner Tube Comp.1 |
3BN-23110-00-00 |
US $381.92 |
||
|
09
|
09
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
10
|
10
2YY-23170-00-00
Cylinder Comp, Front Fork
|
2YY-23170-00-00 |
— | ||
|
11
|
11
2YY-23141-00-00
Spring, Front Fork
|
2YY-23141-00-00 |
— | ||
|
12
|
12
43F-23142-10-00
Seat, Spring Upper
|
43F-23142-10-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
43F-23111-10-00
Bolt, Cap
|
43F-23111-10-00 |
— | ||
|
14
|
14
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
15
|
15
3BN-23146-00-00
Washer, Oil Seal
|
3BN-23146-00-00 |
— | ||
|
16
|
16
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
17
|
17
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
18
|
18
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
20
|
20
2YY-23118-00-00
Spacer
|
2YY-23118-00-00 |
— | ||
|
21
|
21
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
22
|
22
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
23
|
23
2YY-23103-00-00
Front Fork Assy (R.h)
|
2YY-23103-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3BN-23136-00-00 Tube, Outer (Right) |
3BN-23136-00-00 |
US $278.24 |
||
| replacement | |||||
|
24
|
24
1D0-23136-10-00 Tube, Outer (Right) |
1D0-23136-10-00 |
US $250.99 |
||
|
25
|
25
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
26
|
26
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
26
|
26
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
27
|
27
3BN-23125-00-00 Metal, Slide 1 |
3BN-23125-00-00 |
US $21.11 |
||
| replacement | |||||
|
27
|
27
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
28
|
28
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
29
|
29
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
30
|
30
3BN-23110-00-00 Inner Tube Comp.1 |
3BN-23110-00-00 |
US $381.92 |
||
|
31
|
31
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
32
|
32
2YY-23170-00-00
Cylinder Comp, Front Fork
|
2YY-23170-00-00 |
— | ||
|
33
|
33
2YY-23141-00-00
Spring, Front Fork
|
2YY-23141-00-00 |
— | ||
|
34
|
34
43F-23142-10-00
Seat, Spring Upper
|
43F-23142-10-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
43F-23111-10-00
Bolt, Cap
|
43F-23111-10-00 |
— | ||
|
36
|
36
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
37
|
37
3BN-23146-00-00
Washer, Oil Seal
|
3BN-23146-00-00 |
— | ||
|
38
|
38
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
39
|
39
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
40
|
40
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
40
|
40
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
40
|
40
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
41
|
41
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
42
|
42
2YY-23118-00-00
Spacer
|
2YY-23118-00-00 |
— | ||
|
43
|
43
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
44
|
44
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
45
|
45
95311-06600-00 Nut |
95311-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
45
|
45
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
46
|
46
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
46
|
46
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
47
|
47
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
47
|
47
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
48
|
48
2KF-23191-10-00
Boot
Ink blue |
2KF-23191-10-00 |
— | ||
| replacement | |||||
|
48
|
48
2KF-23191-11-00
Boot (Ink Blue)
Ink blue |
2KF-23191-11-00 |
— | ||
|
49
|
49
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $5.40 |
||
|
50
|
50
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
50
|
50
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
51
|
51
3BN-23340-00-00
Under Bracket Comp
|
3BN-23340-00-00 |
— | ||
|
52
|
52
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
52
|
52
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
53
|
53
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
53
|
53
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
53
|
53
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
54
|
54
4V5-23389-00-00 Guide, Cable |
4V5-23389-00-00 |
from US $10.63 |
||
|
55
|
55
3R4-23317-00-00 Holder, Cable |
3R4-23317-00-00 |
from US $25.08 |
||
