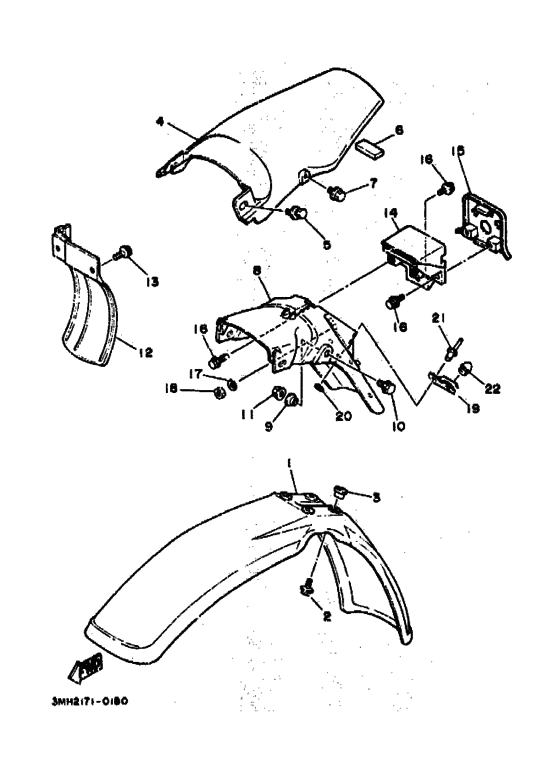

Fender Diagram Yamaha DT200
- Year
- 1990
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 3MH2
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-21511-11-00 Fender, FrontSKY BLUE |
3R9-21511-11-00 |
from US $52.31 |
||
|
2
|
2
901-19060-97-00 Bolt, With Washer |
901-19060-97-00 |
from US $1.70 |
||
| replacements | |||||
|
2
|
2
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
2
|
2
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
|
3
|
3
90387-062V8-00 Collar(2Wg) |
90387-062V8-00 |
from US $3.40 |
||
|
4
|
4
3MH-21611-10-00
Fender, Rear
SKY BLUE |
3MH-21611-10-00 |
— | ||
|
5
|
5
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
5
|
5
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
5
|
5
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
6
|
6
3BN-21639-00-00 Damper 2 |
3BN-21639-00-00 |
US $3.12 |
||
|
7
|
7
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
7
|
7
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
7
|
7
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
8
|
8
3MH-21685-00-00
Bracket, License
|
3MH-21685-00-00 |
— | ||
|
9
|
9
90560-08066-00 Collar |
90560-08066-00 |
from US $2.69 |
||
| replacement | |||||
|
9
|
9
90387-08079-00 Collar |
90387-08079-00 |
from US $3.26 |
||
|
10
|
10
95816-08020-00 Bolt, Flange |
95816-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
10
|
10
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
11
|
11
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
11
|
11
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
12
|
12
3BN-21642-00-00
Guard, Flap
|
3BN-21642-00-00 |
— | ||
|
13
|
13
90119-06194-00 Bolt, With Washer |
90119-06194-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
13
|
13
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
14
|
14
3MH-2163A-00-00
Cover, Rear Fender 1
|
3MH-2163A-00-00 |
— | ||
|
15
|
15
21T-21685-20-00
Bracket, License
|
21T-21685-20-00 |
— | ||
|
16
|
16
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
16
|
16
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
17
|
17
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
17
|
17
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
17
|
17
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
18
|
18
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
18
|
18
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
19
|
19
3MH-21689-00-00
Bracket, Rear Stay 2
|
3MH-21689-00-00 |
— | ||
|
20
|
20
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
20
|
20
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
21
|
21
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
22
|
22
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
22
|
22
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
