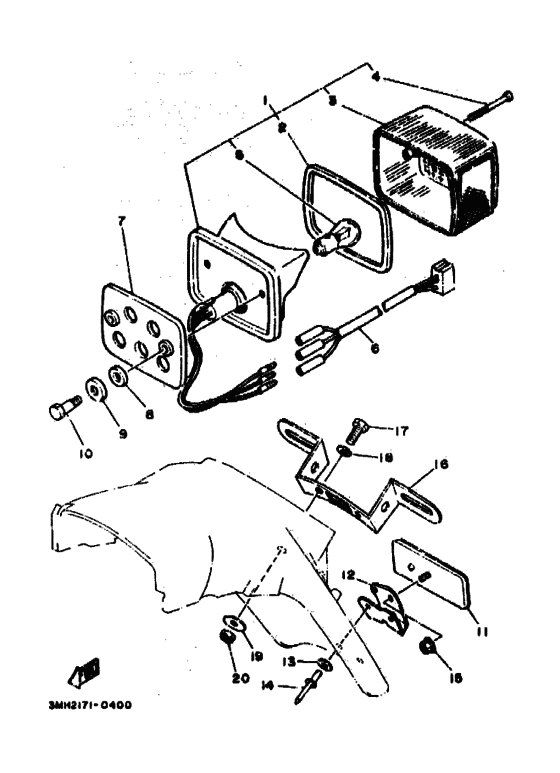

Taillight Diagram Yamaha DT200
- Year
- 1990
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 3MH2
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W9-84710-60-00 Taillight Unit Assy |
1W9-84710-60-00 |
from US $78.34 |
||
| replacement | |||||
|
1
|
1
1W9-84710-61-00 Taillight Unit Assy |
1W9-84710-61-00 |
from US $78.34 |
||
|
2
|
2
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
2
|
2
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
4
|
4
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
4
|
4
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
4
|
4
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
5
|
5
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
5
|
5
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
5
|
5
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
6
|
6
42U-84517-00-00 Cord, Taillight |
42U-84517-00-00 |
US $20.05 |
||
|
7
|
7
4L0-84753-00-00 Damper |
4L0-84753-00-00 |
from US $10.91 |
||
|
8
|
8
90201-083A0-00 Washer, Plate |
90201-083A0-00 |
from US $1.98 |
||
|
9
|
9
90209-08125-00 Washer |
90209-08125-00 |
from US $3.26 |
||
|
10
|
10
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
11
|
11
3Y6-85130-01-00 Rear Reflector Assy |
3Y6-85130-01-00 |
from US $21.40 |
||
| replacement | |||||
|
11
|
11
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
12
|
12
33G-85132-00-00 Bracket, Reflector 1 |
33G-85132-00-00 |
from US $9.92 |
||
| replacement | |||||
|
12
|
12
33G-85132-02-00 Bracket, Reflector 1 |
33G-85132-02-00 |
from US $9.92 |
||
|
13
|
13
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
13
|
13
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
14
|
14
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
15
|
15
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
3MH-84551-00-00
Bracket, Licence
|
3MH-84551-00-00 |
— | ||
|
17
|
17
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
18
|
18
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
19
|
19
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
19
|
19
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
20
|
20
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
20
|
20
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
