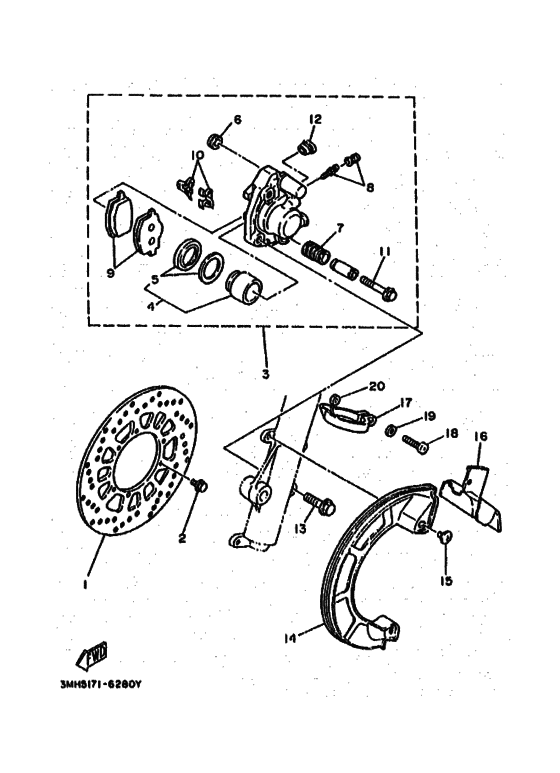

Front brake caliper Diagram Yamaha DT200
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3MH5
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3BN-2582T-00-00 Disc, Brake (Left) |
3BN-2582T-00-00 |
US $353.69 |
||
| replacement | |||||
|
1
|
1
3BN-2582T-01-00 Disc, Brake (Left) |
3BN-2582T-01-00 |
US $269.64 |
||
|
2
|
2
901-09067-57-00
Bolt
|
901-09067-57-00 |
— | ||
| replacements | |||||
|
2
|
2
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
2
|
2
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
3
|
3
3BN-2580T-10-00 Caliper Assy (Left) |
3BN-2580T-10-00 |
from US $348.55 |
||
| replacement | |||||
|
3
|
3
3BN-2580T-11-00 |
3BN-2580T-11-00 |
US $403.97 |
||
|
4
|
4
34X-W0057-00-00 Piston Assy, Caliper |
34X-W0057-00-00 |
from US $94.23 |
||
|
5
|
5
34X-W0047-00-00 Caliper Seal Kit |
34X-W0047-00-00 |
from US $48.74 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
7
|
7
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
8
|
8
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
8
|
8
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
9
|
9
3BN-W0045-01-00
Brake Pad Kit
|
3BN-W0045-01-00 |
— | ||
| replacement | |||||
|
9
|
9
3BN-25805-02-00 Brake Pad Kit |
3BN-25805-02-00 |
from US $41.36 |
||
|
10
|
10
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
11
|
11
34X-25926-00-00 Bolt |
34X-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
12
|
12
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
14
|
14
3BN-25715-20-00
Cover 1
PURPLISH WHITE SOLID 1 |
3BN-25715-20-00 |
— | ||
|
15
|
15
90149-06194-00 Screw |
90149-06194-00 |
from US $3.14 |
||
| replacement | |||||
|
15
|
15
90111-06806-00
Bolt
|
90111-06806-00 |
— | ||
|
16
|
16
3BN-25716-30-00
Cover 2
PURPLISH WHITE SOLID 1 |
3BN-25716-30-00 |
— | ||
|
17
|
17
3ET-25719-00-00 Band |
3ET-25719-00-00 |
US $33.72 |
||
|
18
|
18
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
20
|
20
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
