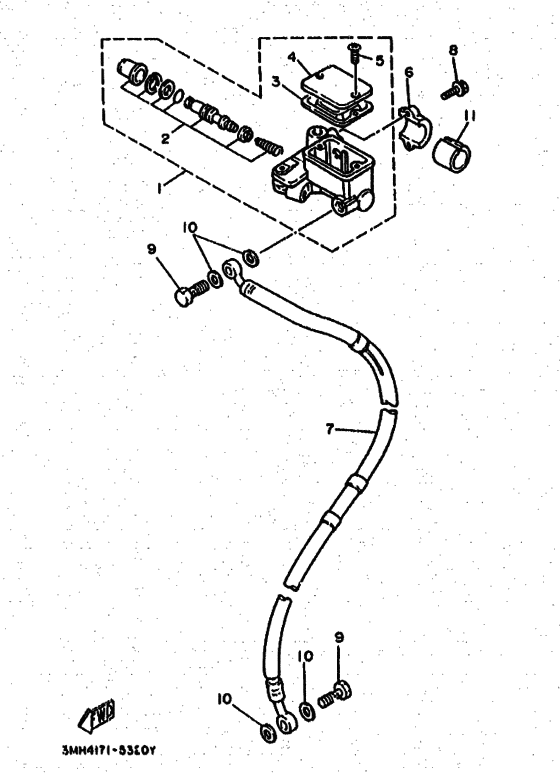

Front master cylinder Diagram Yamaha DT200
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3MH5
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KF-25850-00-00 Master Cylinder Assy |
2KF-25850-00-00 |
from US $194.65 |
||
| replacement | |||||
|
1
|
1
5CG-2583T-12-00 Master Cylinder Assy |
5CG-2583T-12-00 |
from US $138.55 |
||
|
2
|
2
59X-W0041-00-00 Cyl Kit,master |
59X-W0041-00-00 |
from US $55.26 |
||
| replacement | |||||
|
2
|
2
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $67.86 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
3BN-25872-02-00
Hose, Brake 1
|
3BN-25872-02-00 |
— | ||
|
8
|
8
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
9
|
9
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
11
|
11
90387-225N2-00 Collar |
90387-225N2-00 |
from US $10.34 |
||
