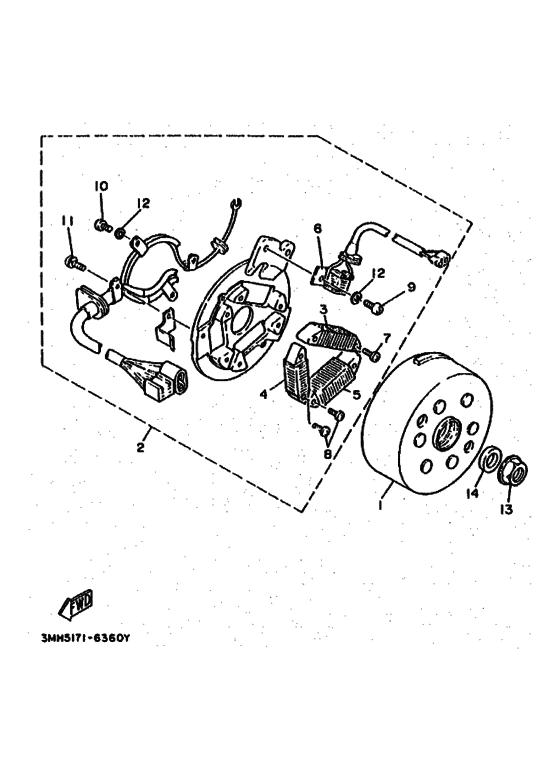

Generator Diagram Yamaha DT200
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3MH5
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ET-85550-00-00
Rotor Assy
|
3ET-85550-00-00 |
— | ||
|
2
|
2
3BN-85560-00-00
Base Assy
|
3BN-85560-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3BN-85560-01-00
Base Assy
|
3BN-85560-01-00 |
— | ||
|
3
|
3
3BN-85520-00-00 Coil, Charge |
3BN-85520-00-00 |
US $168.56 |
||
|
4
|
4
3BN-81313-00-00
Coil, Lighting 1
|
3BN-81313-00-00 |
— | ||
|
5
|
5
3BN-81314-00-00 Coil, Lighting 2 |
3BN-81314-00-00 |
US $104.99 |
||
|
6
|
6
4KG-85595-00-00 Coil, Pulser |
4KG-85595-00-00 |
from US $84.20 |
||
| replacement | |||||
|
6
|
6
4KG-85595-01-00 Coil, Pulser |
4KG-85595-01-00 |
from US $88.15 |
||
|
7
|
7
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
8
|
8
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
9
|
9
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
10
|
10
98507-04006-00 Vis, Tete Tronconique |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
12
|
12
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
13
|
13
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
14
|
14
90201-123L6-00 Washer, Plate |
90201-123L6-00 |
from US $10.20 |
||
