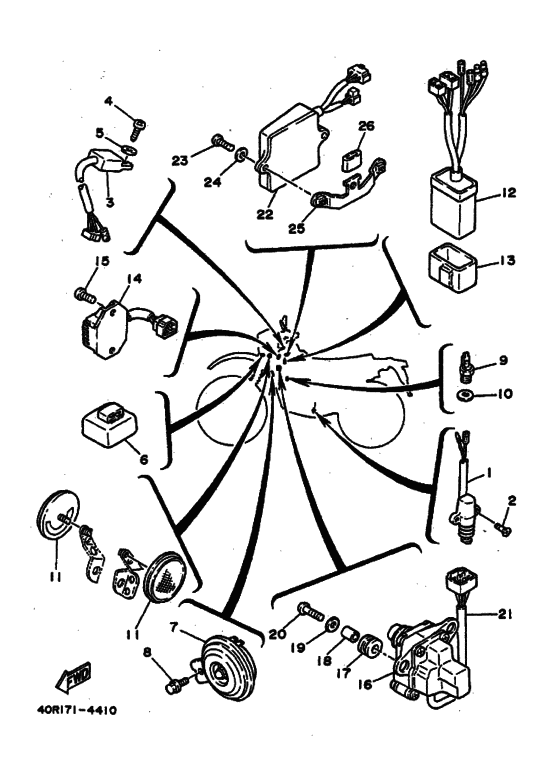

Electrical 2 Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
2
|
2
98706-05018-00 Screw, Flat Head |
98706-05018-00 |
from US $2.27 |
||
| replacement | |||||
|
2
|
2
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
3
|
3
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
4
|
4
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
5
|
5
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
|
7
|
7
34X-83371-20-00 Horn |
34X-83371-20-00 |
US $51.81 |
||
| replacement | |||||
|
7
|
7
4LR-83371-11-00 Horn |
4LR-83371-11-00 |
from US $51.81 |
||
|
8
|
8
95026-06010-00 Bolt, Flange |
95026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
9
|
9
10V-83591-00-00
Thermo Unit
|
10V-83591-00-00 |
— | ||
|
10
|
10
90430-10164-00 Gasket |
90430-10164-00 |
from US $1.81 |
||
|
11
|
11
2N8-85111-00-00 Reflector, Front 1 |
2N8-85111-00-00 |
from US $11.62 |
||
| replacement | |||||
|
11
|
11
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
12
|
12
37F-85540-M1-00
C.d.i. Unit Assy
|
37F-85540-M1-00 |
— | ||
|
13
|
13
34X-85546-00-00
Band
|
34X-85546-00-00 |
— | ||
|
14
|
14
34X-81960-90-00 Rectifier & Regulator Assy |
34X-81960-90-00 |
US $235.22 |
||
| replacement | |||||
|
14
|
14
3BN-81960-01-00 Rectifier & Regulator Assy |
3BN-81960-01-00 |
US $235.22 |
||
|
15
|
15
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
16
|
16
34X-85820-00-00
Servo Motor Assy
|
34X-85820-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
18
|
18
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
18
|
18
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.63 |
||
|
18
|
18
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
19
|
19
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
925-02060-25-00
Screw, Pan Head
|
925-02060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
21
|
21
34X-85825-00-00 Cover, Wire |
34X-85825-00-00 |
from US $18.59 |
||
| replacement | |||||
|
21
|
21
34X-85825-01-00 Cover, Wire |
34X-85825-01-00 |
US $18.59 |
||
|
22
|
22
37F-85830-M0-00
Control Unit Assy
|
37F-85830-M0-00 |
— | ||
|
23
|
23
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
23
|
23
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
24
|
24
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
34X-85991-00-00
Bracket, Unit
|
34X-85991-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
36X-83321-00-00 Damper, Flasher 1 |
36X-83321-00-00 |
US $8.64 |
||
