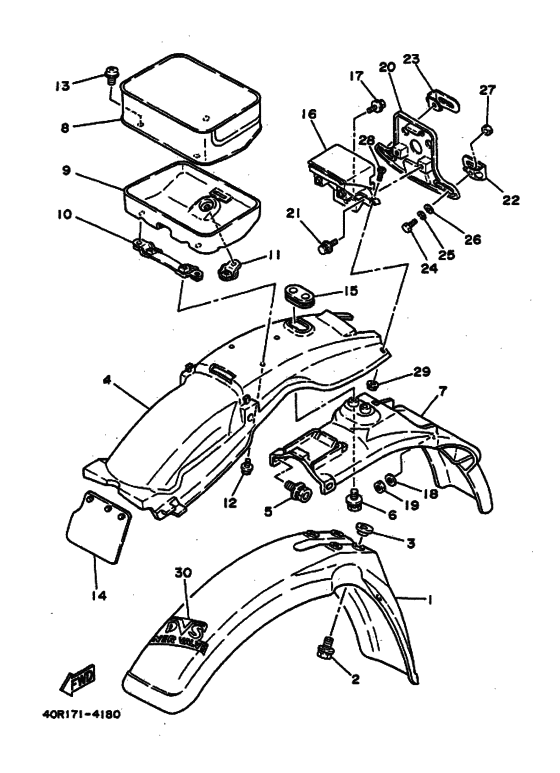

Fender Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-21511-80-00
Fender, Front
clean white |
10V-21511-80-00 |
— | ||
| replacement | |||||
|
1
|
1
10V-21511-00-00
Fender, Front
clean white |
10V-21511-00-00 |
— | ||
|
2
|
2
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
3
|
3
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
4
|
4
40R-21611-00-00
Fender, Rear
clean white |
40R-21611-00-00 |
— | ||
|
5
|
5
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
6
|
6
901-19060-97-00 Bolt, With Washer |
901-19060-97-00 |
from US $1.70 |
||
| replacements | |||||
|
6
|
6
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
6
|
6
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
|
7
|
7
40R-21685-00-00
Bracket, License
|
40R-21685-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
33G-24850-00-00
Carrier Box Assembly
|
33G-24850-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
33G-24833-00-00
Bracket, Carrier 2
|
33G-24833-00-00 |
— | ||
|
10
|
10
34X-24884-00-00
Stay, Document Box
|
34X-24884-00-00 |
— | ||
|
11
|
11
34X-24895-00-00
Stay
|
34X-24895-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
12
|
12
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
12
|
12
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
13
|
13
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
13
|
13
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
14
|
14
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
15
|
15
34X-21639-00-00
Damper 2
|
34X-21639-00-00 |
— | ||
|
16
|
16
40R-2163A-00-00
Cover, Rear Fender 2
|
40R-2163A-00-00 |
— | ||
|
17
|
17
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
17
|
17
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
18
|
18
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
18
|
18
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
18
|
18
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
19
|
19
95306-06600-00 Nut |
95306-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
20
|
20
21T-21685-20-00
Bracket, License
|
21T-21685-20-00 |
— | ||
|
21
|
21
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
21
|
21
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
22
|
22
42U-21688-00-00
Bracket, Rear Stay
|
42U-21688-00-00 |
— | ||
|
23
|
23
42U-21689-00-00
Bracket, Rear Stay 2
|
42U-21689-00-00 |
— | ||
|
24
|
24
973-06060-20-00
Bolt
|
973-06060-20-00 |
— | ||
| replacements | |||||
|
24
|
24
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
25
|
25
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
26
|
26
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
27
|
27
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
27
|
27
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
28
|
28
90154-05001-00 Screw, Bind |
90154-05001-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
29
|
29
95701-05100-00 Nut, Flange (1J3) |
95701-05100-00 |
from US $1.07 |
||
| replacement | |||||
|
29
|
29
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
30
|
30
34Y-2163H-00-00
Emblem 2
|
34Y-2163H-00-00 |
— | ||
