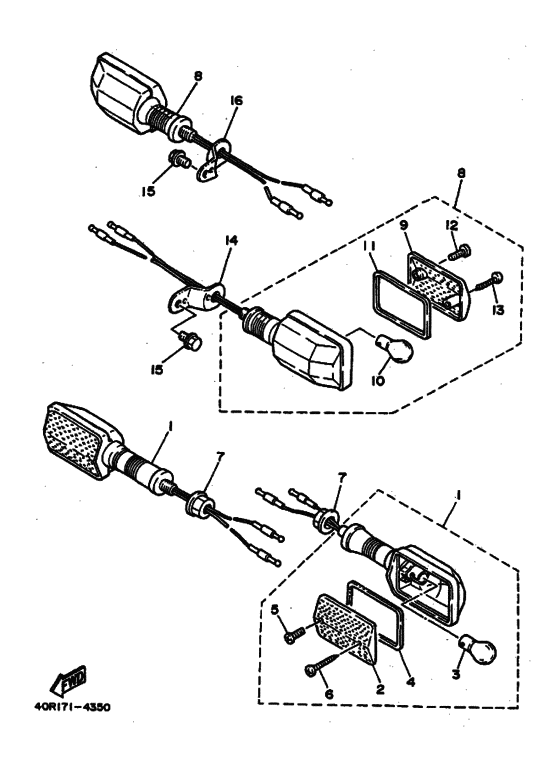

Flasher light Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-83310-70-00
Front Flasher Light Assembly 1
|
5Y1-83310-70-00 |
— | ||
|
2
|
2
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
3
|
3
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
3
|
3
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
4
|
4
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
5
|
5
985-03040-10-00
Screw, Pan Head
|
985-03040-10-00 |
— | ||
| replacement | |||||
|
5
|
5
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
6
|
6
97702-40530-00 Screw, Tapping |
97702-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
7
|
7
95302-12700-00 Nut, Hex |
95302-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
8
|
8
5Y1-83330-70-00 Rear Flasher Light Assembly 1 |
5Y1-83330-70-00 |
from US $75.99 |
||
| replacement | |||||
|
8
|
8
37A-83330-21-00 Rear Flasher Light Assembly 1 |
37A-83330-21-00 |
from US $75.99 |
||
|
9
|
9
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
10
|
10
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
10
|
10
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
11
|
11
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
12
|
12
985-03040-10-00
Screw, Pan Head
|
985-03040-10-00 |
— | ||
| replacement | |||||
|
12
|
12
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
13
|
13
97702-40530-00 Screw, Tapping |
97702-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
14
|
14
10V-83368-00-00
Stay, Flasher 1
|
10V-83368-00-00 |
— | ||
|
15
|
15
95026-08012-00 Bolt, Flange |
95026-08012-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
16
|
16
10V-83369-00-00 Stay, Flasher 2 |
10V-83369-00-00 |
US $57.08 |
||
