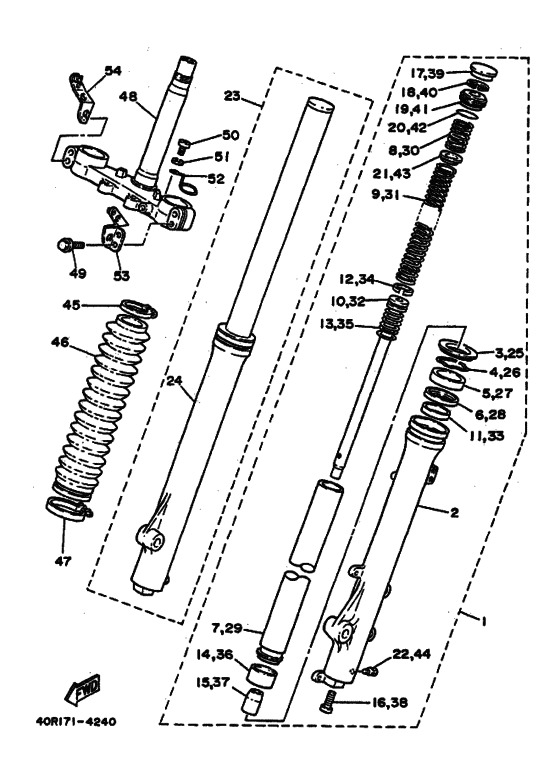

Front fork Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34Y-23102-00-00
Front Fork Assy (L.h)
|
34Y-23102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
34X-23126-00-38 Tube, Outer (L.h) |
34X-23126-00-38 |
US $232.42 |
||
|
3
|
3
34X-23144-00-00 Seal, Dust |
34X-23144-00-00 |
US $21.39 |
||
| replacement | |||||
|
3
|
3
1KH-23144-00-00 Seal, Dust |
1KH-23144-00-00 |
from US $21.39 |
||
|
4
|
4
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
5
|
5
34X-23145-00-00 Oil Seal |
34X-23145-00-00 |
from US $14.17 |
||
| replacement | |||||
|
5
|
5
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
6
|
6
1T4-23147-00-00 O-Ring |
1T4-23147-00-00 |
from US $9.07 |
||
| replacement | |||||
|
6
|
6
1KH-23147-00-00 Seal, Spacer |
1KH-23147-00-00 |
from US $9.07 |
||
|
7
|
7
35E-23110-00-00
Inner Tube Comp.1
|
35E-23110-00-00 |
— | ||
|
8
|
8
34X-23351-00-00
Spring
|
34X-23351-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
34X-23141-00-00
Spring, Front Fork
|
34X-23141-00-00 |
— | ||
|
10
|
10
35E-23171-00-00
Piston, Front Fork
|
35E-23171-00-00 |
— | ||
| replacement | |||||
|
10
|
10
1RH-23171-00-00
Piston, Front Fork
|
1RH-23171-00-00 |
— | ||
|
11
|
11
34X-23125-00-00 Metal, Slide 1 |
34X-23125-00-00 |
from US $12.75 |
||
|
12
|
12
34X-23157-00-00 Ring, Piston |
34X-23157-00-00 |
from US $11.19 |
||
|
13
|
13
34X-23151-00-00 Spring, Rebound |
34X-23151-00-00 |
from US $9.21 |
||
|
14
|
14
34X-23135-00-00 Metal, Slide 2 |
34X-23135-00-00 |
from US $12.75 |
||
|
15
|
15
34X-23166-00-00
Spacer, Oil Lock
|
34X-23166-00-00 |
— | ||
| replacements | |||||
|
15
|
15
1KH-23166-00-00
Spacer, Oil Lock
|
1KH-23166-00-00 |
— | ||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
17
|
17
35E-23168-00-00 Cap, Front Fork |
35E-23168-00-00 |
from US $8.93 |
||
|
18
|
18
35E-23183-00-00 Circlip |
35E-23183-00-00 |
from US $3.26 |
||
|
19
|
19
35E-23111-00-00 Bolt, Cap |
35E-23111-00-00 |
from US $16.58 |
||
|
20
|
20
35E-23114-00-00 O-Ring |
35E-23114-00-00 |
from US $3.12 |
||
| replacement | |||||
|
20
|
20
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.33 |
||
|
21
|
21
34X-23142-00-00
Seat, Spring Upper
|
34X-23142-00-00 |
— | ||
|
22
|
22
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
23
|
23
34Y-23103-00-00
Front Fork Assy (R.h)
|
34Y-23103-00-00 |
— | ||
|
24
|
24
34X-23136-00-38
Tube, Outer (Right)
|
34X-23136-00-38 |
— | ||
|
25
|
25
34X-23144-00-00 Seal, Dust |
34X-23144-00-00 |
US $21.39 |
||
| replacement | |||||
|
25
|
25
1KH-23144-00-00 Seal, Dust |
1KH-23144-00-00 |
from US $21.39 |
||
|
26
|
26
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
27
|
27
34X-23145-00-00 Oil Seal |
34X-23145-00-00 |
from US $14.17 |
||
| replacement | |||||
|
27
|
27
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
28
|
28
1T4-23147-00-00 O-Ring |
1T4-23147-00-00 |
from US $9.07 |
||
| replacement | |||||
|
28
|
28
1KH-23147-00-00 Seal, Spacer |
1KH-23147-00-00 |
from US $9.07 |
||
|
29
|
29
35E-23110-00-00
Inner Tube Comp.1
|
35E-23110-00-00 |
— | ||
|
30
|
30
34X-23351-00-00
Spring
|
34X-23351-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
34X-23141-00-00
Spring, Front Fork
|
34X-23141-00-00 |
— | ||
|
32
|
32
35E-23171-00-00
Piston, Front Fork
|
35E-23171-00-00 |
— | ||
| replacement | |||||
|
32
|
32
1RH-23171-00-00
Piston, Front Fork
|
1RH-23171-00-00 |
— | ||
|
33
|
33
34X-23125-00-00 Metal, Slide 1 |
34X-23125-00-00 |
from US $12.75 |
||
|
34
|
34
34X-23157-00-00 Ring, Piston |
34X-23157-00-00 |
from US $11.19 |
||
|
35
|
35
34X-23151-00-00 Spring, Rebound |
34X-23151-00-00 |
from US $9.21 |
||
|
36
|
36
34X-23135-00-00 Metal, Slide 2 |
34X-23135-00-00 |
from US $12.75 |
||
|
37
|
37
34X-23166-00-00
Spacer, Oil Lock
|
34X-23166-00-00 |
— | ||
| replacements | |||||
|
37
|
37
1KH-23166-00-00
Spacer, Oil Lock
|
1KH-23166-00-00 |
— | ||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
39
|
39
35E-23168-00-00 Cap, Front Fork |
35E-23168-00-00 |
from US $8.93 |
||
|
40
|
40
35E-23183-00-00 Circlip |
35E-23183-00-00 |
from US $3.26 |
||
|
41
|
41
35E-23111-00-00 Bolt, Cap |
35E-23111-00-00 |
from US $16.58 |
||
|
42
|
42
35E-23114-00-00 O-Ring |
35E-23114-00-00 |
from US $3.12 |
||
| replacement | |||||
|
42
|
42
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.33 |
||
|
43
|
43
34X-23142-00-00
Seat, Spring Upper
|
34X-23142-00-00 |
— | ||
|
44
|
44
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
45
|
45
34X-23192-00-00 Band |
34X-23192-00-00 |
from US $17.71 |
||
|
46
|
46
34X-23191-00-00
Boot
chappy red |
34X-23191-00-00 |
— | ||
|
47
|
47
34X-2311E-00-00 Band |
34X-2311E-00-00 |
from US $5.81 |
||
| replacement | |||||
|
47
|
47
3RW-23192-00-00 Band |
3RW-23192-00-00 |
from US $5.81 |
||
|
48
|
48
34Y-23340-00-90
Under Bracket Comp
|
34Y-23340-00-90 |
— | ||
| replacement | |||||
|
48
|
48
53V-23340-00-90 Under Bracket Comp |
53V-23340-00-90 |
US $492.46 |
||
|
49
|
49
34X-23346-00-00 Bolt 1 |
34X-23346-00-00 |
US $1.07 |
||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
92506-06012-00 Screw |
92506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
50
|
50
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
51
|
51
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
51
|
51
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
52
|
52
10V-2331E-01-00 Guide, Cable |
10V-2331E-01-00 |
from US $6.57 |
||
| replacement | |||||
|
52
|
52
10V-2331E-02-00 Guide, Cable |
10V-2331E-02-00 |
from US $7.65 |
||
|
53
|
53
40R-2317M-00-00
Stay 3
|
40R-2317M-00-00 |
— | ||
|
54
|
54
40R-2317N-00-00
Stay 4
|
40R-2317N-00-00 |
— | ||
