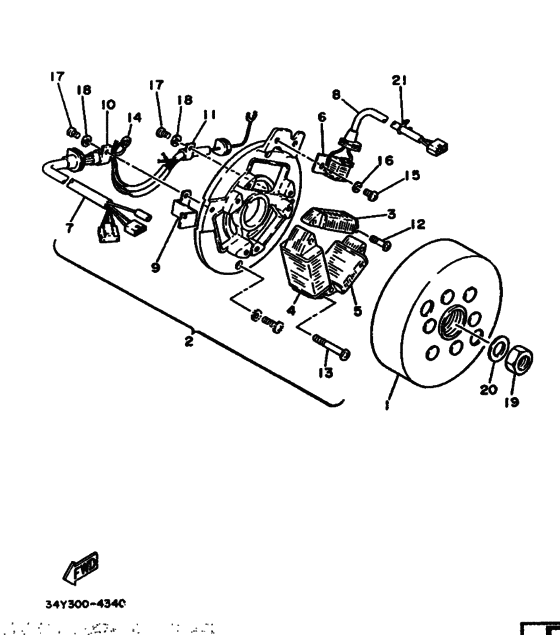

Generator Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-85550-M0-00
Rotor Assy
|
34X-85550-M0-00 |
— | ||
| replacement | |||||
|
1
|
1
34X-85550-M1-00
Rotor Assy
|
34X-85550-M1-00 |
— | ||
|
2
|
2
34Y-85560-M0-00
Base Assy
|
34Y-85560-M0-00 |
— | ||
| replacement | |||||
|
2
|
2
34Y-85560-M1-00
Base Assy
|
34Y-85560-M1-00 |
— | ||
|
3
|
3
34Y-85520-M1-00 Coil, Charge |
34Y-85520-M1-00 |
US $194.81 |
||
|
4
|
4
34Y-81313-M0-00
Coil, Lighting 1
|
34Y-81313-M0-00 |
— | ||
| replacement | |||||
|
4
|
4
3BN-81313-00-00
Coil, Lighting 1
|
3BN-81313-00-00 |
— | ||
|
5
|
5
34Y-81314-M0-00 Coil, Lighting 2 |
34Y-81314-M0-00 |
US $104.99 |
||
| replacement | |||||
|
5
|
5
3BN-81314-00-00 Coil, Lighting 2 |
3BN-81314-00-00 |
US $104.99 |
||
|
6
|
6
34X-85595-M0-00
Coil, Pulser
|
34X-85595-M0-00 |
— | ||
|
7
|
7
34Y-8131X-M0-00
Cord Assy
|
34Y-8131X-M0-00 |
— | ||
|
8
|
8
34X-8132Y-M0-00
Lead Wire Assy
|
34X-8132Y-M0-00 |
— | ||
|
9
|
9
34X-81328-M1-00
Clamp
|
34X-81328-M1-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90461-05036-00 Clamp |
90461-05036-00 |
from US $2.55 |
||
|
11
|
11
34X-81528-M0-00
Clamp 1
|
34X-81528-M0-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
13
|
13
90157-04045-00 Screw, Pan Head |
90157-04045-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
14
|
14
8R4-85568-M0-00 Terminal, Earth 1 |
8R4-85568-M0-00 |
US $3.55 |
||
|
15
|
15
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
17
|
17
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
17
|
17
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
17
|
17
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
18
|
18
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
901-70120-67-00
Nut, Hexagon
|
901-70120-67-00 |
— | ||
| replacement | |||||
|
19
|
19
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
20
|
20
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
21
|
21
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
