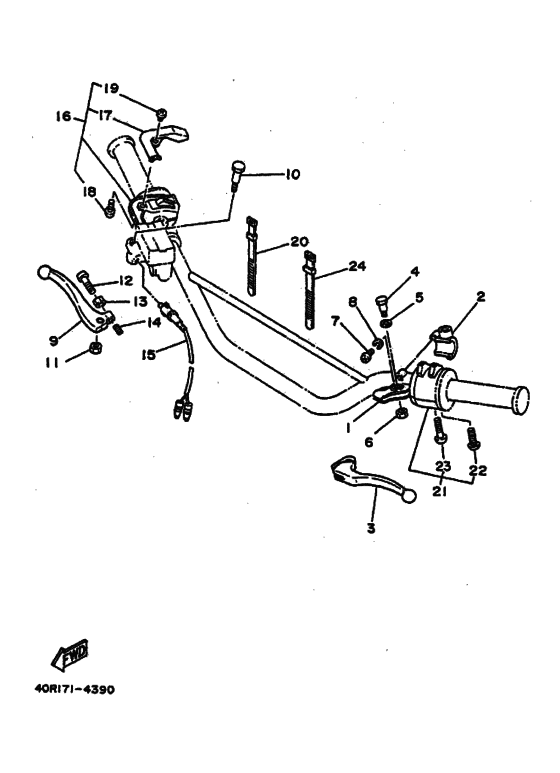

Handle switch & lever Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-82911-00-00 Holder, Lever 1 |
33G-82911-00-00 |
from US $33.44 |
||
| replacement | |||||
|
1
|
1
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
5Y1-83912-00-00 Lever 1 |
5Y1-83912-00-00 |
from US $23.52 |
||
| replacement | |||||
|
3
|
3
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
4
|
4
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
4
|
4
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
4
|
4
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
5
|
5
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
6
|
6
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
43F-83922-00-00 Lever 2 |
43F-83922-00-00 |
from US $26.28 |
||
| replacement | |||||
|
9
|
9
3FY-83922-01-00 Lever 2 |
3FY-83922-01-00 |
from US $20.71 |
||
|
10
|
10
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
11
|
11
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
13
|
13
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
14
|
14
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
15
|
15
34X-83980-00-00 Front Stop Switch Assy |
34X-83980-00-00 |
from US $31.09 |
||
| replacement | |||||
|
15
|
15
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
16
|
16
47J-83976-00-00
Switch, Handle 1
|
47J-83976-00-00 |
— | ||
| replacement | |||||
|
16
|
16
47J-83976-01-00
Switch, Handle 1
|
47J-83976-01-00 |
— | ||
|
17
|
17
33G-83956-00-00
Cap 1
|
33G-83956-00-00 |
— | ||
| replacement | |||||
|
17
|
17
33G-83956-01-00
Cap 1
|
33G-83956-01-00 |
— | ||
|
18
|
18
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
19
|
19
98906-04008-00 Screw, Bind |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
20
|
20
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
21T-83973-00-00
Switch,handle Wr250Zj Wr200Adr
LEFT |
21T-83973-00-00 |
— | ||
| replacement | |||||
|
21
|
21
21T-83973-01-00
Switch, Handle 3
LEFT |
21T-83973-01-00 |
— | ||
|
22
|
22
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
23
|
23
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
23
|
23
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
24
|
24
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
