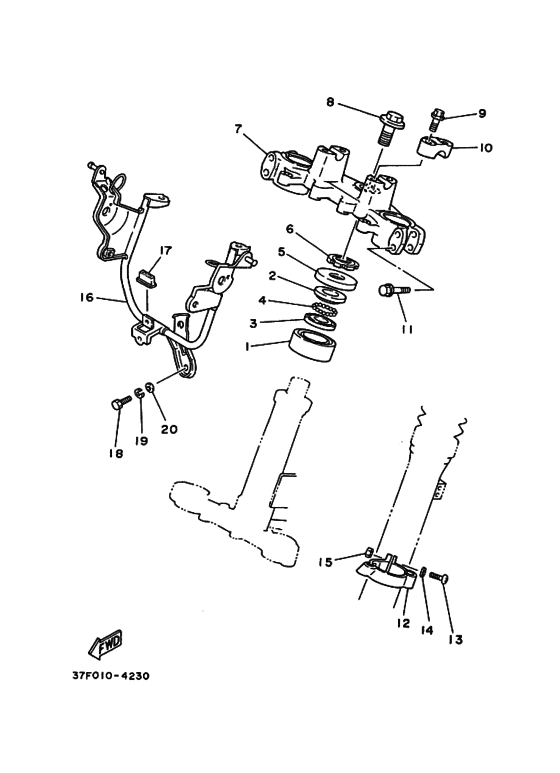

Steering Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
2
|
2
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
2
|
2
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
2
|
2
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
3
|
3
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
3
|
3
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
3
|
3
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
4
|
4
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
4
|
4
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
5
|
5
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
6
|
6
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
6
|
6
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
6
|
6
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
7
|
7
34X-23435-00-98
Crown, Handle
low gloss black |
34X-23435-00-98 |
— | ||
|
8
|
8
90105-14329-00 Bolt, Flange |
90105-14329-00 |
from US $9.92 |
||
|
9
|
9
90105-08345-00 Bolt, Flange |
90105-08345-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
10
|
10
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
11
|
11
95826-08035-00 Bolt, Flange |
95826-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
12
|
12
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
13
|
13
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
13
|
13
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
14
|
14
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
15
|
15
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
34X-23174-00-00
Stay, Headlight
|
34X-23174-00-00 |
— | ||
| replacement | |||||
|
16
|
16
34X-23174-01-00
Stay, Headlight
|
34X-23174-01-00 |
— | ||
|
17
|
17
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
18
|
18
97306-06016-00 Bolt |
97306-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
18
|
18
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
19
|
19
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
20
|
20
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
