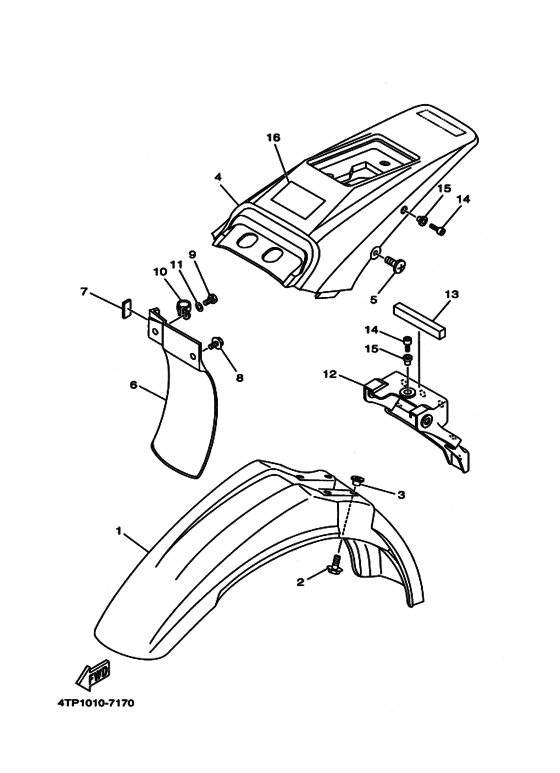

Fender Diagram Yamaha DT230 Lanza
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4TP2
- Sales region
- Japan (010)
- Engine Capacity
- 230
- Color Variant
- A
- Model
- DT230
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GY-21511-30-00 Fender, FrontＵＲ デイープパープリツシユブルーメタリツク Ｃ |
4GY-21511-30-00 |
US $95.08 |
||
|
2
|
2
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
2
|
2
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
3
|
3
903-87066-81-00
Collar
カラー; |
903-87066-81-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06857-00 Collarカラー; |
90387-06857-00 |
from US $1.52 |
||
|
4
|
4
4TP-21611-20-00
Fender, Rear
ＵＲ デイープパープリツシユブルーメタリツク Ｃグラフィック無 |
4TP-21611-20-00 |
— | ||
|
5
|
5
90150-06021-00 Screw, Round Head |
90150-06021-00 |
from US $2.22 |
||
| replacement | |||||
|
5
|
5
901-50068-10-00 Screw, round head |
901-50068-10-00 |
US $2.22 |
||
|
6
|
6
3BN-21642-00-00
Guard, Flap
ガード，フラツプ; |
3BN-21642-00-00 |
— | ||
|
7
|
7
4TP-21652-00-00
Protector
プロテクター; |
4TP-21652-00-00 |
— | ||
|
8
|
8
90119-06194-00 Bolt, With Washer |
90119-06194-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
8
|
8
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
9
|
9
970-07060-12-00
Bolt
ボルト; |
970-07060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.36 |
||
|
10
|
10
90465-08122-00 Clamp |
90465-08122-00 |
from US $4.11 |
||
| replacement | |||||
|
10
|
10
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
11
|
11
90201-06057-00 Washer, Plateワツシヤ，プレート; |
90201-06057-00 |
from US $1.28 |
||
|
12
|
12
4GY-21685-00-00
Bracket, License
|
4GY-21685-00-00 |
— | ||
|
13
|
13
4TP-21639-00-00 Damper 2 |
4TP-21639-00-00 |
US $2.69 |
||
|
14
|
14
91317-06016-00 Boltボルト; |
91317-06016-00 |
from US $1.18 |
||
|
15
|
15
90560-06244-00 Spacerスペーサ; |
90560-06244-00 |
from US $1.84 |
||
|
16
|
16
3XC-2118K-10-00 Label, Cautionラベル， コーシヨン; |
3XC-2118K-10-00 |
US $4.03 |
||
