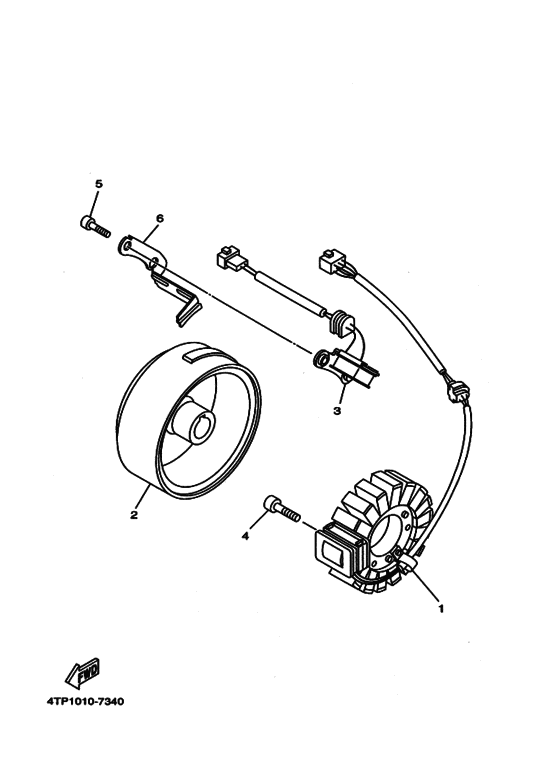

Generator Diagram Yamaha DT230 Lanza
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4TP2
- Sales region
- Japan (010)
- Engine Capacity
- 230
- Color Variant
- A
- Model
- DT230
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TP-85510-00-00 Stator Assyステータアセンブリ; |
4TP-85510-00-00 |
US $358.32 |
||
|
2
|
2
4TP-85550-10-00
Rotor Assy
ロータアセンブリ; |
4TP-85550-10-00 |
— | ||
| replacement | |||||
|
2
|
2
4TP-85550-11-00
Rotor Assy
ロータアセンブリ; |
4TP-85550-11-00 |
— | ||
|
3
|
3
4TP-85580-00-00
Coil, Pulser
|
4TP-85580-00-00 |
— | ||
|
4
|
4
90110-06225-00 Boltボルト，ヘキサゴンソケツトヘツド; |
90110-06225-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.39 |
||
|
5
|
5
901-10061-36-00
Bolt
|
901-10061-36-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
6
|
6
4TP-15484-00-00
Clamp 2
|
4TP-15484-00-00 |
— | ||
