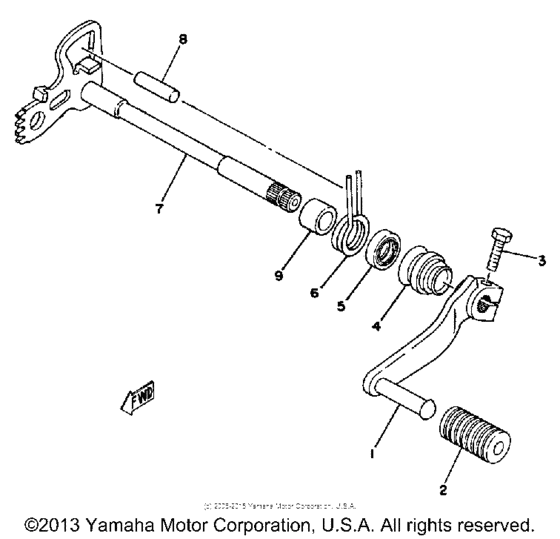

Shift shaft Diagram Yamaha DT250
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 250
- Model
- DT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-18111-01-00
Pedal, Shift
|
1M1-18111-01-00 |
— | ||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
4
|
4
214-18131-00-00
Boot, Sealing
|
214-18131-00-00 |
— | ||
|
5
|
5
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
6
|
6
90508-32318-00 Spring,torsion |
90508-32318-00 |
from US $3.85 |
||
| replacement | |||||
|
6
|
6
90508-320A6-00 Spring, Torsion |
90508-320A6-00 |
from US $6.23 |
||
|
7
|
7
1M1-18101-01-00
Shift Shaft Assembly 1
|
1M1-18101-01-00 |
— | ||
|
8
|
8
93608-30152-00
Pin, Dowel
|
93608-30152-00 |
— | ||
|
9
|
9
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
