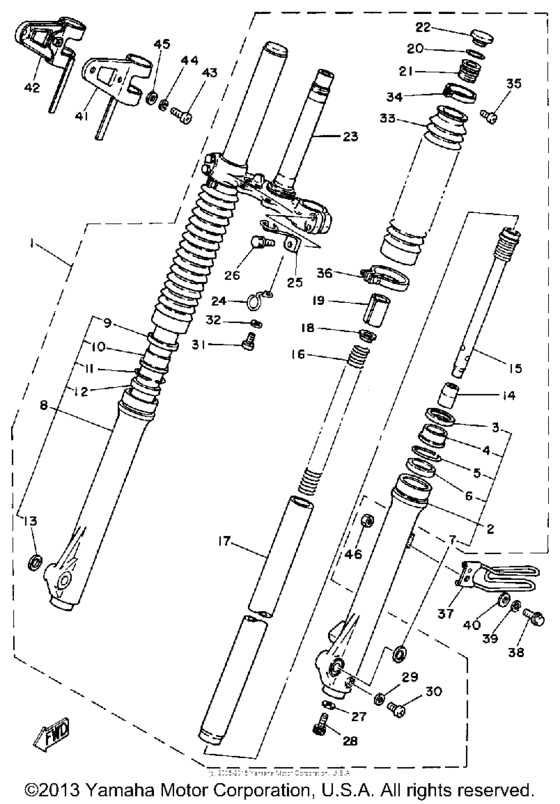

Front fork Diagram Yamaha DT250
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- DT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2N6-23101-00-00
Front Fork Assembly
|
2N6-23101-00-00 |
— | ||
|
2
|
2
2N6-23126-00-00
Tube, Outer 1
|
2N6-23126-00-00 |
— | ||
|
3
|
3
999-99015-10-00
Cover, Dust Seal
|
999-99015-10-00 |
— | ||
|
4
|
4
1G8-23144-L1-00 Seal, Dust |
1G8-23144-L1-00 |
from US $28.28 |
||
|
5
|
5
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
6
|
6
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
7
|
7
1W1-23168-L0-00
Cap, Front Fork
|
1W1-23168-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
2N6-23136-00-00
Tube, Outer 2
|
2N6-23136-00-00 |
— | ||
|
9
|
9
999-99015-10-00
Cover, Dust Seal
|
999-99015-10-00 |
— | ||
|
10
|
10
1G8-23144-L1-00 Seal, Dust |
1G8-23144-L1-00 |
from US $28.28 |
||
|
11
|
11
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
12
|
12
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
13
|
13
1W1-23168-L0-00
Cap, Front Fork
|
1W1-23168-L0-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
15
|
15
2N6-23170-00-00
Cylinder, Frtfrk
|
2N6-23170-00-00 |
— | ||
|
16
|
16
2N6-23141-00-00
Spring, Front Fork
|
2N6-23141-00-00 |
— | ||
|
17
|
17
2N6-23110-00-00
Inner Tube 1
|
2N6-23110-00-00 |
— | ||
|
18
|
18
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
19
|
19
1W2-23118-10-00
Spacer
|
1W2-23118-10-00 |
— | ||
|
20
|
20
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
21
|
21
1U6-23111-M1-00 Bolt, Cap (1U6-23111-M0)1U6-23111-M0 |
1U6-23111-M1-00 |
from US $25.61 |
||
|
22
|
22
1U6-23168-M1-00 Cap, Front Fork |
1U6-23168-M1-00 |
from US $10.31 |
||
|
23
|
23
4E7-23340-30-33
Under Bracket (2N6-23340-00-3
2N6-23340-00-3 YAMAHA BLACK |
4E7-23340-30-33 |
— | ||
|
24
|
24
2N6-23319-00-00
Holder, Cable 2
|
2N6-23319-00-00 |
— | ||
|
25
|
25
2N4-23317-00-00
Holder, Cable
|
2N4-23317-00-00 |
— | ||
|
26
|
26
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
27
|
27
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
28
|
28
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
28
|
28
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
29
|
29
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
30
|
30
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
30
|
30
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
30
|
30
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
30
|
30
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
31
|
31
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
2N6-23191-00-00 Boot, Front Fork |
2N6-23191-00-00 |
from US $49.03 |
||
|
34
|
34
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
35
|
35
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
36
|
36
1W1-23318-L0-00
Holder, Cable 1
|
1W1-23318-L0-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
2N6-23318-00-00
Wire, Holder 1
|
2N6-23318-00-00 |
— | ||
|
38
|
38
95811-06020-00 Bolt, Flange |
95811-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
38
|
38
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
41
|
41
2N6-84118-00-00
Stay, Headlight 1
YAMAHA BLACK |
2N6-84118-00-00 |
— | ||
|
42
|
42
2N6-84119-00-33
Stay, Headlight 2
YAMAHA BLACK |
2N6-84119-00-33 |
— | ||
|
43
|
43
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
45
|
45
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
46
|
46
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
