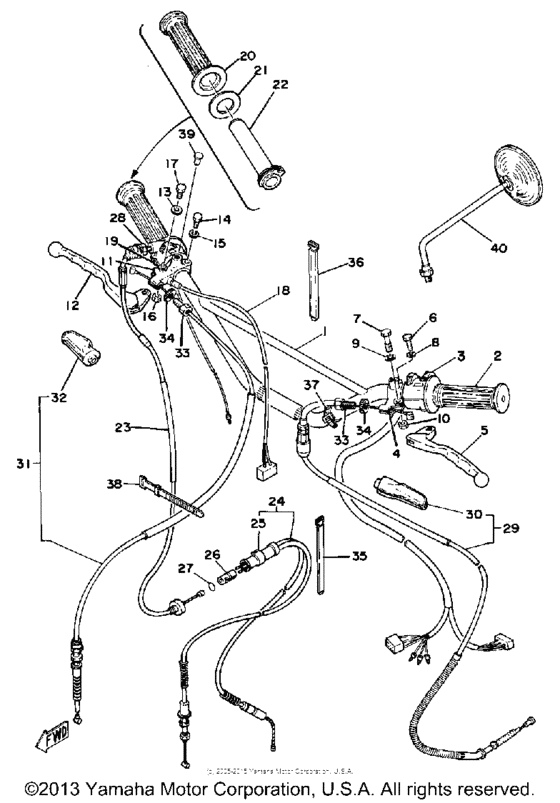

Steering handle - cable Diagram Yamaha DT250
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- DT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
1M1-83973-50-00
Switch, Handle 3
|
1M1-83973-50-00 |
— | ||
|
4
|
4
3Y6-82911-00-00 Holder, Lever 1LOW GLOSS BLK |
3Y6-82911-00-00 |
from US $31.03 |
||
|
5
|
5
2H0-83912-30-00 Lever L |
2H0-83912-30-00 |
from US $19.69 |
||
| replacement | |||||
|
5
|
5
2H0-83912-31-00 Lever 1 |
2H0-83912-31-00 |
from US $19.69 |
||
|
6
|
6
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
6
|
6
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
7
|
7
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
7
|
7
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
10
|
10
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
11
|
11
361-82920-93-00
Holder, Lever 2 (36182-92131-
36182-92131-00 |
361-82920-93-00 |
— | ||
|
12
|
12
2H0-83922-30-00 Lever R |
2H0-83922-30-00 |
from US $19.27 |
||
| replacement | |||||
|
12
|
12
2H0-83922-31-00 Lever 2 |
2H0-83922-31-00 |
from US $18.86 |
||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
14
|
14
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
17
|
17
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
18
|
18
1M1-83980-30-00
Front Stop Switch As
AS |
1M1-83980-30-00 |
— | ||
| replacement | |||||
|
18
|
18
1M1-83980-31-00 Front Stop Switch AssyAS |
1M1-83980-31-00 |
from US $23.52 |
||
|
19
|
19
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
20
|
20
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $10.44 |
||
|
21
|
21
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
22
|
22
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
23
|
23
2A6-26311-00-00
Cable, Throttle 1
|
2A6-26311-00-00 |
— | ||
|
24
|
24
2N6-26312-00-00
Cable, Throttle 2
|
2N6-26312-00-00 |
— | ||
|
25
|
25
1M1-26339-00-00
Boot
|
1M1-26339-00-00 |
— | ||
|
26
|
26
1M1-26263-00-00
Piece, Connecting
|
1M1-26263-00-00 |
— | ||
|
27
|
27
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
28
|
28
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
29
|
29
1M1-26335-00-00
Cable, clutch
|
1M1-26335-00-00 |
— | ||
| replacement | |||||
|
29
|
29
5X3-26335-00-00
Cable, clutch
|
5X3-26335-00-00 |
— | ||
|
30
|
30
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
30
|
30
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
31
|
31
2N6-26341-00-00
Cable, Brake
|
2N6-26341-00-00 |
— | ||
|
32
|
32
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
33
|
33
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
33
|
33
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
34
|
34
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
34
|
34
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
35
|
35
12R-26397-00-00
Band
|
12R-26397-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
36
|
36
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
36
|
36
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
37
|
37
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
38
|
38
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
39
|
39
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
40
|
40
1Y1-26290-10-00 Mirror Assembly Lh (TOYO)LH |
1Y1-26290-10-00 |
from US $17.18 |
||
|
41
|
41
1Y1-26290-00-00 Mirror Assembly Rh (TOYO)RH OPTIONAL EQUIPMENT |
1Y1-26290-00-00 |
from US $18.28 |
||
