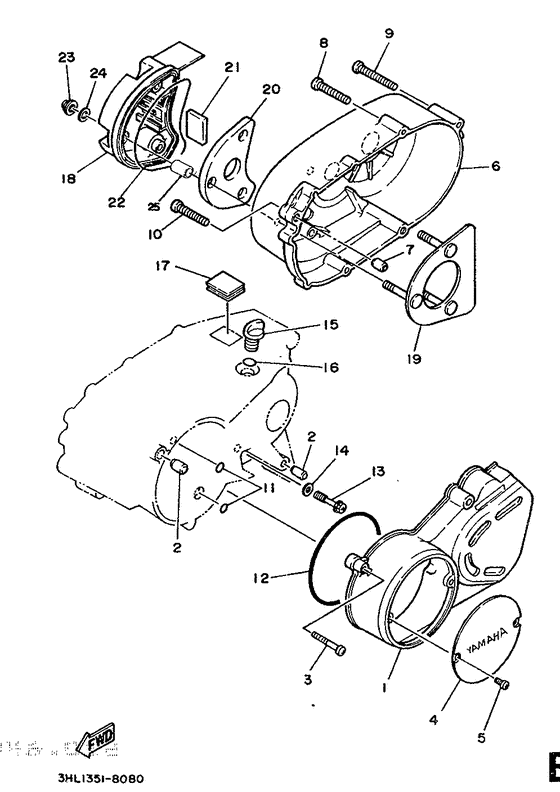

Couvercles de carter Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
41N-15411-00-00
Cover, Crankcase 1
|
41N-15411-00-00 |
— | ||
|
02
|
02
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
02
|
02
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
02
|
02
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
03
|
03
92506-06040-00 Screw |
92506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
04
|
04
5L1-15415-00-00 Cover, 1 |
5L1-15415-00-00 |
US $23.09 |
||
| replacement | |||||
|
04
|
04
164-15415-00-00 Cover, 1 |
164-15415-00-00 |
from US $23.09 |
||
|
05
|
05
98506-04006-00 Screw, Pan Head |
98506-04006-00 |
US $1.56 |
||
| replacement | |||||
|
05
|
05
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
06
|
06
3HL-15421-00-00
Cover, Crankcase 2
|
3HL-15421-00-00 |
— | ||
|
07
|
07
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
07
|
07
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
07
|
07
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
08
|
08
92506-06040-00 Screw |
92506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
09
|
09
92506-06050-00 Screw |
92506-06050-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.66 |
||
|
10
|
10
92506-06040-00 Screw |
92506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
11
|
11
93210-05187-00 O-Ring |
93210-05187-00 |
from US $1.98 |
||
|
12
|
12
93211-07492-00
O-Ring
|
93211-07492-00 |
— | ||
|
13
|
13
90153-06035-00 Screw, Hexagon |
90153-06035-00 |
US $1.21 |
||
|
14
|
14
90430-06180-00 Gasket |
90430-06180-00 |
from US $2.09 |
||
| replacement | |||||
|
14
|
14
904-30062-18-00 Gasket(J17) |
904-30062-18-00 |
from US $2.50 |
||
|
15
|
15
2T4-15363-00-00 Plug, Oil |
2T4-15363-00-00 |
from US $5.38 |
||
| replacement | |||||
|
15
|
15
4J2-15363-10-00 Plug, Oil |
4J2-15363-10-00 |
from US $2.36 |
||
|
16
|
16
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
16
|
16
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
17
|
17
3HL-15471-00-00
Duct, Air
|
3HL-15471-00-00 |
— | ||
|
18
|
18
3HL-15471-00-00
Duct, Air
|
3HL-15471-00-00 |
— | ||
|
19
|
19
3HL-15191-00-00
Plate
|
3HL-15191-00-00 |
— | ||
|
20
|
20
3HL-15407-00-00
Element 1
|
3HL-15407-00-00 |
— | ||
|
21
|
21
2GM-15408-00-00
Element 2
|
2GM-15408-00-00 |
— | ||
|
22
|
22
3HL-15472-00-00 Seal, Air Duct |
3HL-15472-00-00 |
US $8.93 |
||
| replacement | |||||
|
22
|
22
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $11.93 |
||
|
23
|
23
90176-06065-00 Nut, Crown |
90176-06065-00 |
from US $1.33 |
||
|
24
|
24
3HL-E5316-00-00
Damper 1
Mbk |
3HL-E5316-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
24
|
24
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
