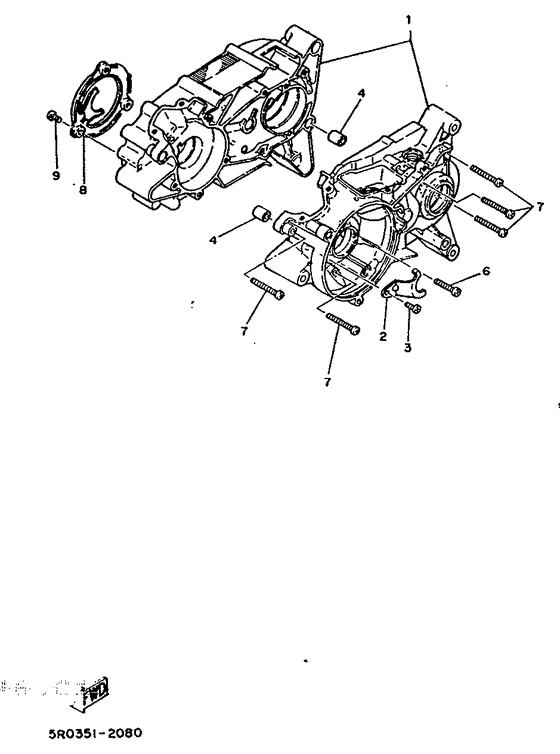

Crankcase Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5R0-15111-00-00
Crankcase 1
|
5R0-15111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
99999-02170-00
Crank Case 1 (5R0)
|
99999-02170-00 |
— | ||
|
02
|
02
5R0-15118-00-00
Holder
|
5R0-15118-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
04
|
04
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
04
|
04
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
05
|
05
5R0-15121-01-00
Crankcase 2
|
5R0-15121-01-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
06
|
06
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
07
|
07
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
07
|
07
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
08
|
08
5R0-15128-00-00
Holder
|
5R0-15128-00-00 |
— | ||
| replacement | |||||
|
08
|
08
5R0-15128-01-00
Holder
|
5R0-15128-01-00 |
— | ||
|
09
|
09
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
