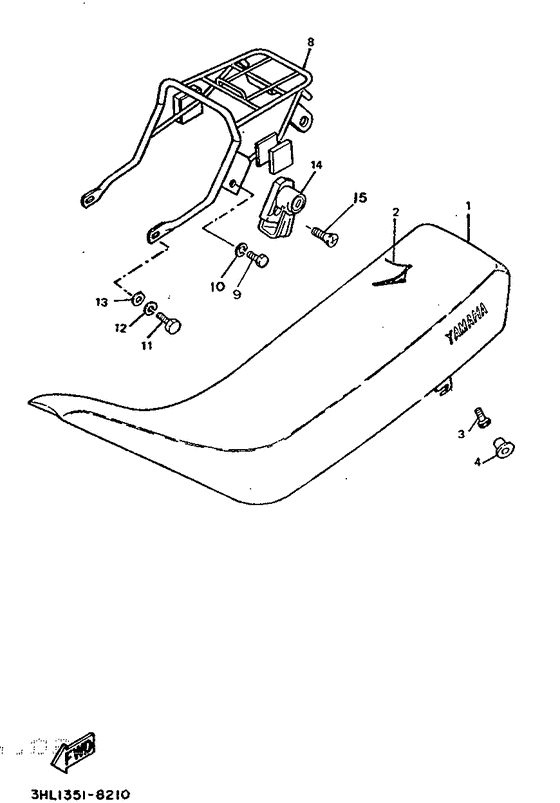

Seat Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-F4730-20-00
Double Seat Assy
Mbk pr machine blanche ou noir |
3HL-F4730-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Mbk pr machine blanche ou noir |
999-99999-99-00 |
— | ||
|
01
|
01
3HL-F4730-30-00
Double Seat Assy
Mbk pr machine blueu |
3HL-F4730-30-00 |
— | ||
| replacement | |||||
|
01
|
01
3HL-F4730-40-00
Double Seat Assy
Mbk pr machine blueu |
3HL-F4730-40-00 |
— | ||
|
02
|
02
3HL-F4731-20-00
Cover, Seat
Mbk |
3HL-F4731-20-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
02
|
02
3HL-F4731-30-00
Cover, Seat
Mbk |
3HL-F4731-30-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
03
|
03
3HL-F4739-00-00
Bolt, Seat Fitting
|
3HL-F4739-00-00 |
— | ||
|
04
|
04
3HL-F4742-00-00
Grommet
|
3HL-F4742-00-00 |
— | ||
|
08
|
08
3HL-F4830-00-98
Sub Carrier Assy
|
3HL-F4830-00-98 |
— | ||
| replacement | |||||
|
08
|
08
3HL-F4830-01-00
Sub Carrier Assy
|
3HL-F4830-01-00 |
— | ||
|
09
|
09
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
09
|
09
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
11
|
11
97006-08014-00
Bolt
|
97006-08014-00 |
— | ||
| replacement | |||||
|
11
|
11
97007-08014-00 Bolt(8Bc) |
97007-08014-00 |
from US $3.12 |
||
|
12
|
12
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
13
|
13
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
14
|
14
5T8-F1398-00-00
Hanger, Helmet
|
5T8-F1398-00-00 |
— | ||
|
15
|
15
92701-06018-00 Screw, Flat Head |
92701-06018-00 |
from US $2.39 |
||
| replacement | |||||
|
15
|
15
98707-06018-00 Screw, Flat |
98707-06018-00 |
from US $2.33 |
||
