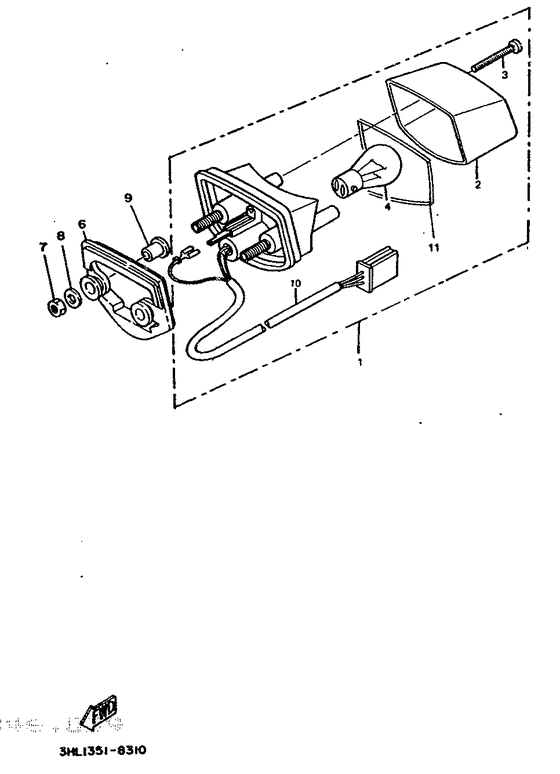

Taillight Diagram Yamaha DT50 DT50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3HL2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- DT50R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HL-H4710-00-00
Taillight Unit Assy
Mbk |
3HL-H4710-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4CT-H4710-00-00
Taillight Unit Assy
Mbk |
4CT-H4710-00-00 |
— | ||
|
02
|
02
3HL-H4520-00-00
Taillight Base Assy
Mbk |
3HL-H4520-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4CT-H4721-00-00
Lens, Taillight
Mbk |
4CT-H4721-00-00 |
— | ||
|
03
|
03
3HL-H4524-00-00
Screw, Lens Fitting
Mbk |
3HL-H4524-00-00 |
— | ||
|
04
|
04
3HL-H4535-00-00 01330 P21/5W 12V StopMbk |
3HL-H4535-00-00 |
US $8.50 |
||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
06
|
06
5T8-H4736-00-00
Damper, Tail 1
Mbk |
5T8-H4736-00-00 |
— | ||
|
07
|
07
953-03066-00-00
Nut, Hexagon
Mbk |
953-03066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95380-06600-00 Nut, HexagonMbk |
95380-06600-00 |
from US $1.18 |
||
|
08
|
08
90201-06812-00
Washer, Plate
Mbk |
90201-06812-00 |
— | ||
|
09
|
09
903-87073-91-00 CollarMbk |
903-87073-91-00 |
from US $2.08 |
||
|
10
|
10
3HL-H4517-00-00
Cord, Taillight
Mbk |
3HL-H4517-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5T8-H4517-00-00
Cord, Taillight
Mbk |
5T8-H4517-00-00 |
— | ||
